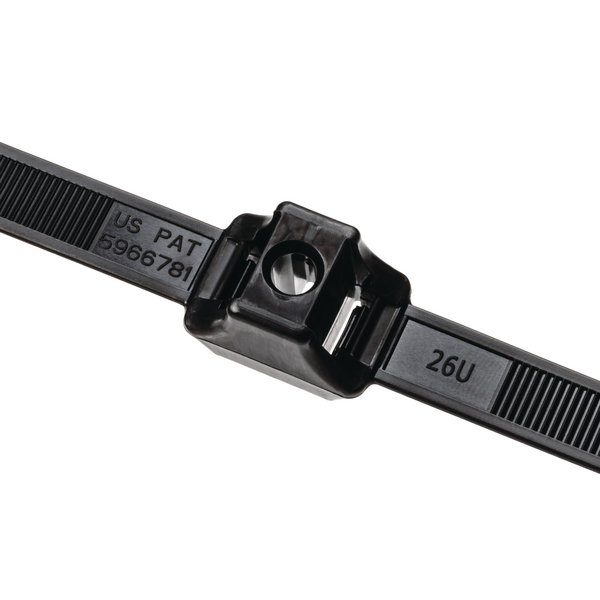

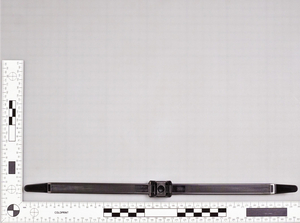

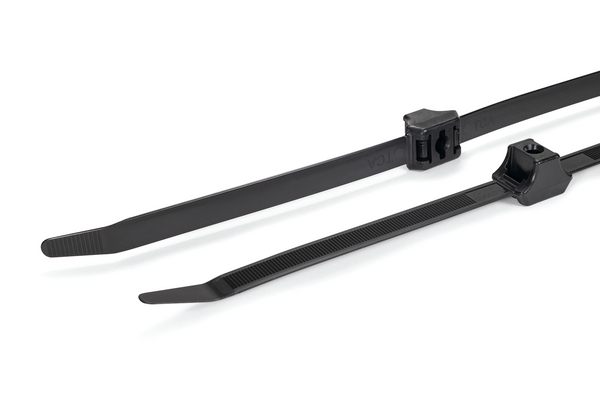

Fixing tie for stud, inside serrated, ∅6.4-33.0mm, black, 500pcs.
Art.-No. 115-00034
| DCT9-PA66HIRHSUV-BK
|
Details
- For parallel routing of cables, wires and hoses
- Minimum pinching of soft hoses and convoluted tubing
- Easy to install without the need for a tool
- DCT9 and DCT11 are releasable
- SDCTR312 for defined standoff to substructure
More products in this product group:
| Application | Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured (DCT9 is for 1/4" bolts). |
| Colour | Black (BK) |

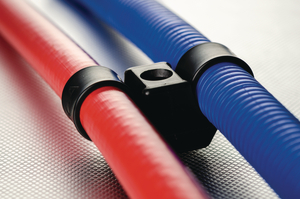

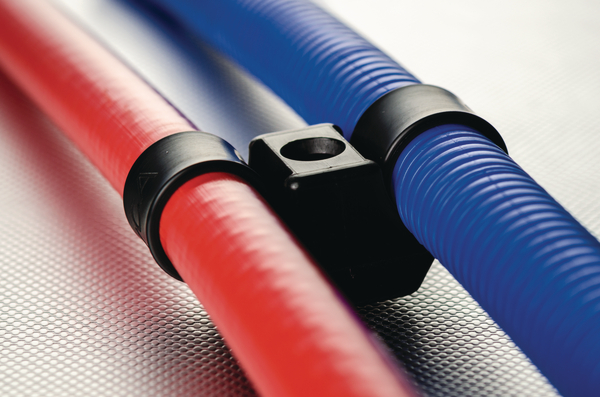

| Description | Dual Clamp Ties are designed to provide parallel separation between hoses, wires, cables, and tubing to protect them from abrasion. These ties have an optional mounting hole for securing bundles along the chassis of tracks, trailers, and heavy duty equipment. The unique one-piece design features the dual head centered on the strap. |
| Fixation Method | Weld Stud Fixing |
| Identification Plate Position | none |
| Key product features | for multiple routing |
| Local order number | DCT90HIRH1 |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | DCT9-PA66HIRHSUV-BK |
| Pack Cont. | 500pcs. |
| Package Content packed in | Bag |
| Product Family | DCT9 for max. bundle diameter 33.0 mm |
| Product Group | 1-Piece Fixing Ties for Weld Studs, for Heavy Duty Applications, for parallel routing |
| Releasable Closure (Yes/No) | No |
| Short Description | 1-Piece Fixing Tie for Weld Studs PA66HIRHS 331x12.8 black |
| Tie Closure | plastic pawl |
| Type | DCT9 |
| Variant | Inside Serrated |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026317564 |
| Packaging 1 - Type | Bag |
| Packaging 3 - Height (m) | 0.219075m |
| Packaging 3 - Length (m) | 0.606425m |
| Packaging 3 - Qty | 500 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0529m³ |
| Packaging 3 - Weight (kg) | 5.7895kg |
| Packaging 3 - Width (m) | 0.3984625m |
| Packaging 4 - Height (m) | 1.239m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 7500 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.189m³ |
| Packaging 4 - Weight (kg) | 107.843kg |
| Packaging 4 - Width (m) | 0.8m |
