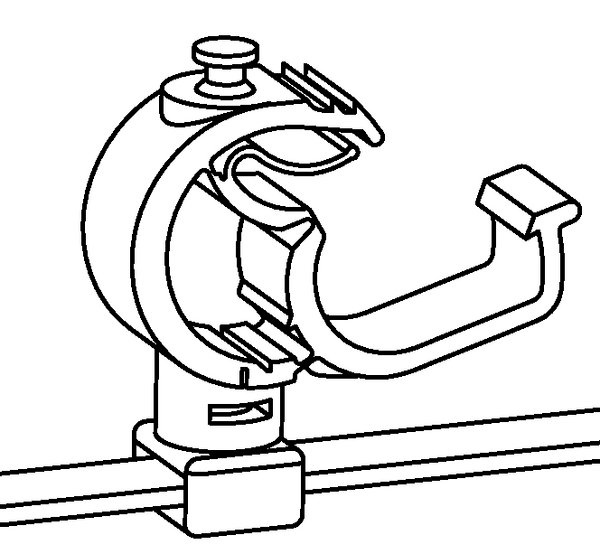

Fixing tie with pipe/tube holder, inside serrated, ∅100mm, black, 200pcs.
Art.-No. 156-00176 | T120RIAHC4TCR-PA66HIRHS-BK | Details

2-piece fixing tie, 360° rotatable, a cable tie in combination with an AHC to route and fix harnesses.

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

2-piece fixing ties with automatic harness clip >

Base Data

Application	Offering a simple and secure method of attaching cables together. Originally designed for the automotive industry, these products are used in a wide range of applications.
Application Tool	ProCut 9 no battery, EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT
Colour	Black (BK)
Identification Plate Position	none
Key product features	rotatable, for multiple routing, removable
Local order number	17309
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	T120RIAHC4TCR-PA66HIRHS-BK
Pack Cont.	200pcs.
Package Content packed in	Carton
Product Family	IAHC-Series
Product Group	2-piece fixing ties with automatic harness clip
Type	T120RIAHC4TCR

Product Dimensions

Attach to Ø	27.0 - 36.0
Bundle Diameter max (metric)	100mm
Bundle ∅	100mm
Length (L)	387mm
Min.Tensile Strength	535N
Thickness (T)	1.8mm
Width (W)	7.6mm

Downloads

Specifications

ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	FR
GTIN-13 / EAN	4031026710839

More Information

ETIM 7.0 Key	EC000046
ETIM 8.0 Key	EC000046
ETIM 9.0 Key	EC000046
UNSPSC Key	39121717
