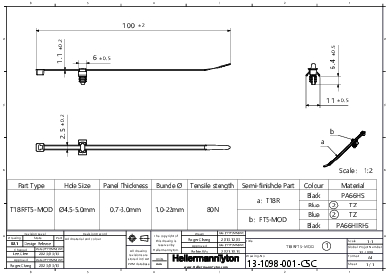

Fixing tie for hole (round), inside serrated, ∅1.0-22.0mm, black, 1000pcs.
Art.-No. 156-01270 | T18RFT5-MOD-PA66HS/PA66HIRHS-BK Details

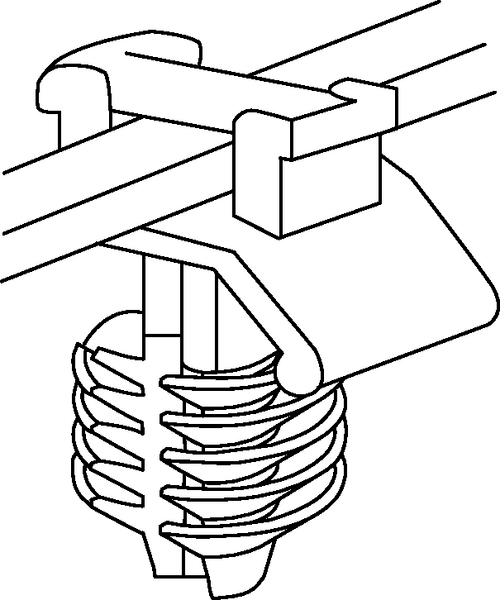

  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises ingress of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
Show more

Request your individual offer now

Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Black (BK)
Description These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
Fixation Method Fir Tree
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position none
Local order number T18RFT5-MOD-HS-BK
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION T18RFT5-MOD-PA66HS/PA66HIRHS-BK
Pack Cont. 1000pcs.
Package Content packed in Bag
Product Family Fir tree parts FT5
Product Group 2-Piece Fixing Ties with Fir Tree, with Wings, for Round Holes
Tie Closure plastic pawl
Type T18RFT5-MOD
Bundle Diameter max (metric) 22.0mm
Bundle ∅ 1.0-22.0mm
Bundle ∅ min. 1.0mm
Disc ∅ 11.0mm
Length (L) 100.0mm
Min.Tensile Strength 80N
Weight/Unit 0.000505kg
Width (W) 2.5mm
for Hole ∅ (FH) 4.5 - 5.0 mm
for Panel Thickness min - max 0.7 - 3 mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin CN
Customs Number 39269097
GTIN-13 / EAN 4031026487625
Packaging 1 - Height (m) 0.11m
Packaging 1 - Length (m) 0.21m
Packaging 1 - Qty 1000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00485
Packaging 1 - Weight (kg) 0.505001kg
Packaging 1 - Width (m) 0.21m
Packaging 3 - Height (m) 0.2m
Packaging 3 - Length (m) 0.59m
Packaging 3 - Qty 12000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.046
Packaging 3 - Weight (kg) 6.880012kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.144m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 240000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.098
Packaging 4 - Weight (kg) 158.6kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
