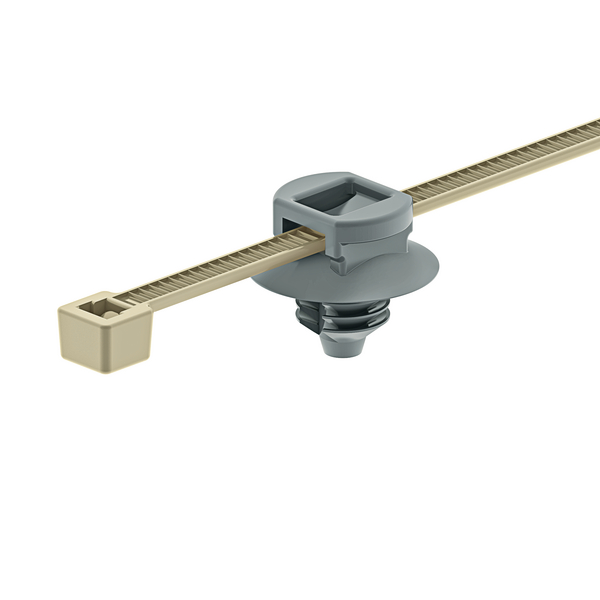

Fixing tie for hole (round), inside serrated, ∅5.0-34.0mm, grey, 500pcs.
Art.-No. 156-01068 | T30RFT6-PA46-GY Details

  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
Show more

Request your individual offer now

Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP
Cable Tie Polyamide 4.6 (PA46)
Colour Grey (GY)
Description These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
Fixation Method Fir Tree
Foot Part Polyamide 4.6 (PA46)
Identification Plate Position none
Local order number T30RFT6/HRGY
Material Polyamide 4.6 (PA46)
PART DESCRIPTION T30RFT6-PA46-GY
Pack Cont. 500pcs.
Package Content packed in Bag
Product Family Fir tree parts FT6
Product Group 2-piece fixing ties with fir tree, with disc, for round holes
Tie Closure plastic pawl
Type T30RFT6
Variant Inside Serrated
Bundle Diameter max (metric) 34.0mm
Bundle ∅ 5.0-34.0mm
Bundle ∅ min. 5.0mm
Disc ∅ 16.0mm
Height (H) 1.1mm
Height (H2) 7.5mm
Length (L) 150.0mm
Length (L2) 11.6mm
Min.Tensile Strength 135N
Thickness (T) 1.1mm
Width (W) 3.5mm
Width (W2) 9.0mm
for Hole ∅ (FH) 6.4 - 7.1 mm
for Panel Thickness min - max 0.8 - 3 mm
Flammability UL 94 V2
Operating Temperature -40 °C to +150 °C
Operating Temperature Foot Part (Metric) -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
ROHS compliant Yes
Specifications
Country of Origin SG
GTIN-13 / EAN 4031026461342
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
