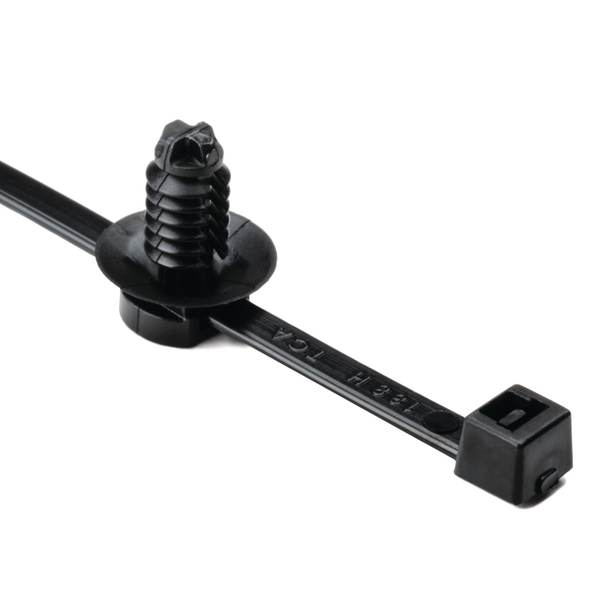

Fixing tie for hole (round), inside serrated, ∅5.0-85.0mm, black, 500pcs.
Art.-No. 111-05350 | T50IFT7-PA66HS-BK Details

  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
Show more

Request your individual offer now

Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Black (BK)
Description These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
Fixation Method Fir tree for round holes
Foot Part Polyamide 6.6, heat stabilised (PA66HS)
Identification Plate Position none
Local order number T50IFT7.NB3E
Material Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION T50IFT7-PA66HS-BK
Pack Cont. 500pcs.
Package Content packed in Bag
Product Family Fir tree parts FT7
Product Group 2-piece fixing ties with fir tree, with disc, for round holes
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50IFT7
Variant Inside Serrated
Bundle Diameter max (metric) 85.0mm
Bundle ∅ 5.0-85.0mm
Bundle ∅ min. 5.0mm
Disc ∅ 16.0mm
Height (H) 1.2mm
Height (H2) 12.7mm
Length (L) 305.0mm
Length (L2) 11.6mm
Length (L3) 19mm
Min.Tensile Strength 225N
Panel Thickness max. 0.8 - 7.0mm
Thickness (T) 1.2mm
Width (W) 4.6mm
Width (W2) 11.6mm
Width (W3) 5.0mm
for Hole ∅ (FH) 6.5 - 7.0 mm
for Panel Thickness min - max 0 - 0.3 "
for Panel Thickness min - max 0.8 - 7 mm
CE Certification No
CSA Certified No
Flammability UL 94 V2
Operating Temperature -40 °C to +125 °C
Operating Temperature Foot Part (Metric) -40 °C to +125 °C
ROHS compliant Yes
Specifications
UV-Stabilised No
Country of Origin SG
GTIN-13 / EAN 4031026105758
Packaging 1 - Qty 100
Packaging 1 - Weight (kg) 0.2000kg
Packaging 3 - Qty 2000
Packaging 3 - Weight (kg) 6.83kg
Packaging 4 - Length (m) 1.20m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 92.0kg
Packaging 4 - Width (m) 0.80m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
