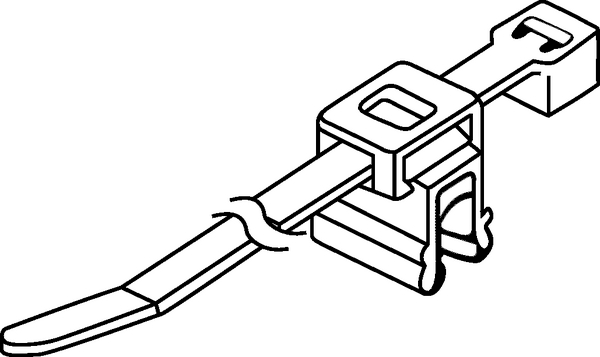

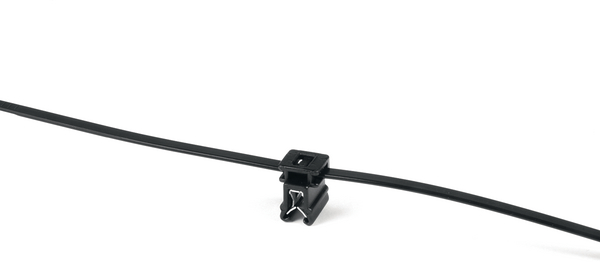

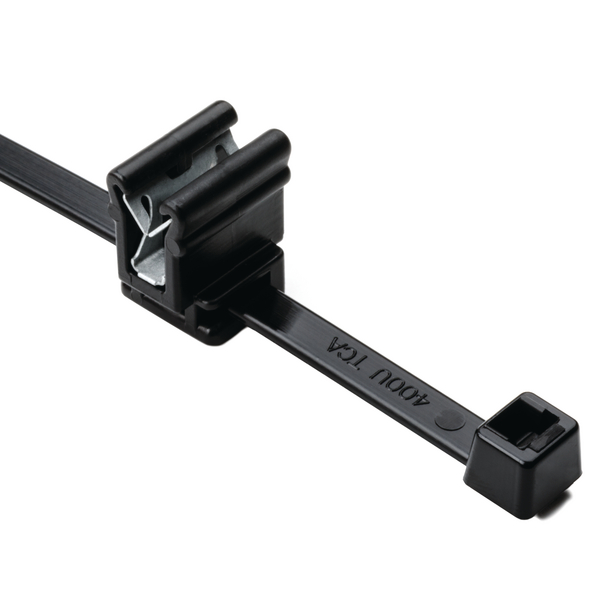

Fixing tie for edge, inside serrated, ∅4.0-45.0mm, black, 500pcs.
Art.-No. 156-02424 | T50REC4A-PA66HS/PA6HIRHS-BK |  Details

Cable tie with edge clip eliminates the need for drilling mounting holes, simplifying installation.

    • Pre-assembled 2-piece fixing tie with EdgeClip
    • Cable tie head can be moved after bundling
    • EC9, EC10, EC21 and EC22 are for minimum bundle diameters of 1 mm
    • For edges of 1 - 3 mm
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet

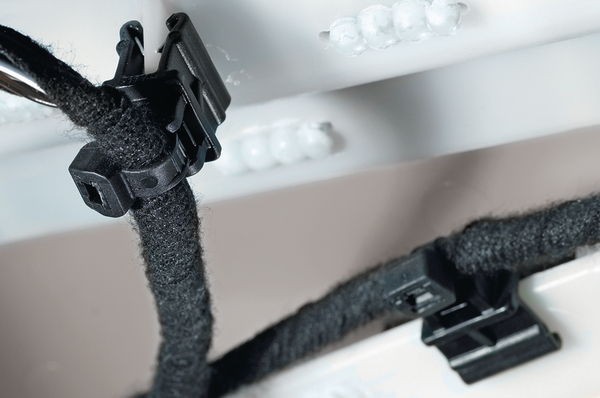

    Application These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel buidling and electrical industry.
    Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)

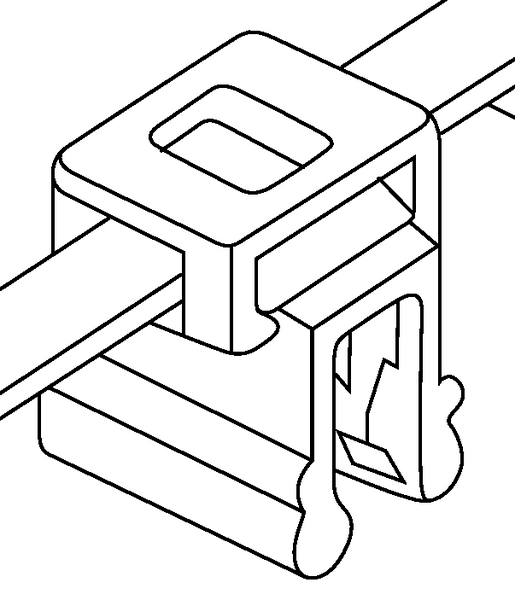

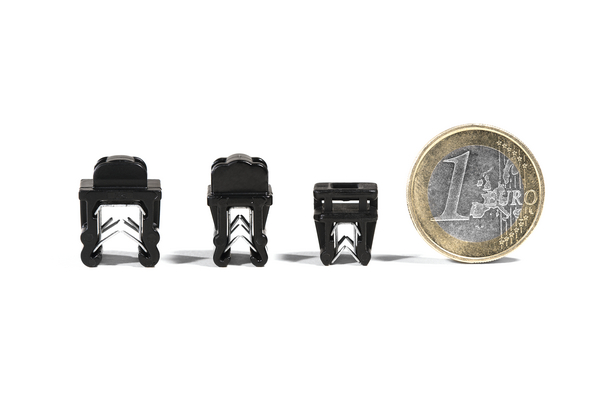

    Description Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 1.0 to 3.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different Edge Clip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the Edge Clip family provides an excellent fastening solution.
    Fixation Method EdgeClip, top, assembled, 2 piece
    Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Identification Plate Position none
    Local order number T50R EC4A HS/HIRHS PRETA
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6, high impact modified, heat stabilised (PA6HIRHS)
    PART DESCRIPTION T50REC4A-PA66HS/PA6HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in Bag
    Product Family EdgeClip-Series, 1.0 - 3.0 mm, top fixing
    Product Group 2-piece fixing ties for edges
    Releasable Closure (Yes/No) No
    Type T50REC4A
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ min. 4.0mm
    Height (H) 1.2mm
    Height (H2) 10.8mm

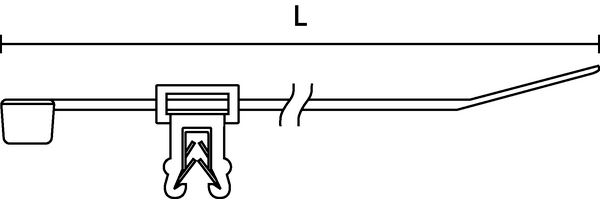

    Length (L) 200mm
    Length (L2) 14.0mm
    Min.Tensile Strength 225N
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    Width (W2) 11.5mm
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    Operating Temperature Foot Part (Metric) -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Country of Origin BR
    GTIN-13 / EAN 7890176086570
    UNSPSC Key 39121703
