31/10/2024

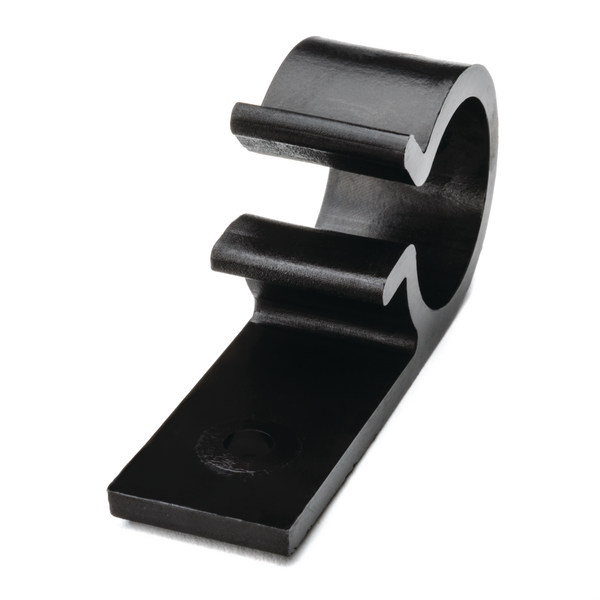

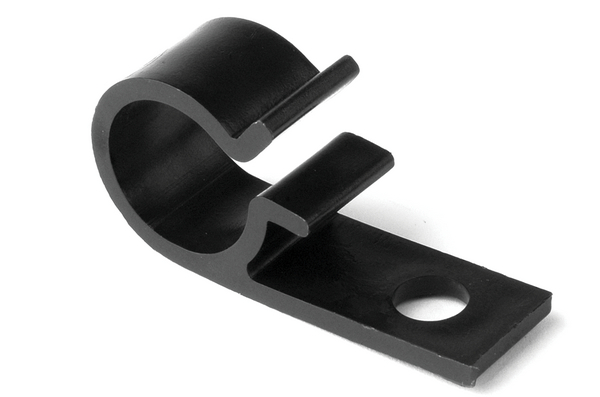

Cable clip with pipe/tube holder/for screw fixation, ∅8.0 mm, Dmin=20.0mm, Dmax=20.0mm
Art.-No. 211-70204 | 8D20-POM-BK Details

  • Screwed D-Clips available in 3 sizes
  • Guaranteed time and cost saving by simply pressing cable into holder
  • Flexible grip for later removal or replacement of cables
  • 3 different bore diameters available for fixing holders

Request your individual offer now

Application Developed for fixing pipes, cables and hoses, the D-Clips elastic locking system ensures optimal fixing and at the same time, easy removal of the fixed elements by simply pressing the lower latch down and pulling the fixed element.
Colour Black (BK)
Fixation Method screw-hole
Local order number D20.NB4P
Material Polyacetal (POM)
PART DESCRIPTION 8D20-POM-BK
Pack Cont. 200pcs.
Package Content packed in Bag
Product Family D-Clip Series
Product Group Screw Mount
Short Description Screw Mount black
Type 8D20
Variant Closed
Bundle Diameter max (metric) 20.0mm
Bundle ∅ 20.0-20.0mm
Bundle ∅ min. 20.0mm
Length (L) 28.0mm
Length (L2) 10.0mm
Nominal ∅ 20.0mm
Nominal ∅ (imperial) 0.75"
Wall (WT) 2.5mm
Wall (WT) (imperial) 0.10"
Weight/Unit 0.0065kg
Width (W) 15.0mm
for Hole ∅ (FH) 8.0 mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +90 °C
ROHS compliant Yes
Specifications
UV-Stabilised No
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660302909
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.356m
Packaging 1 - Qty 200
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00543
Packaging 1 - Weight (kg) 1.300001kg
Packaging 1 - Width (m) 0.305m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 2000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 13.80201kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 40000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 297.04kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
