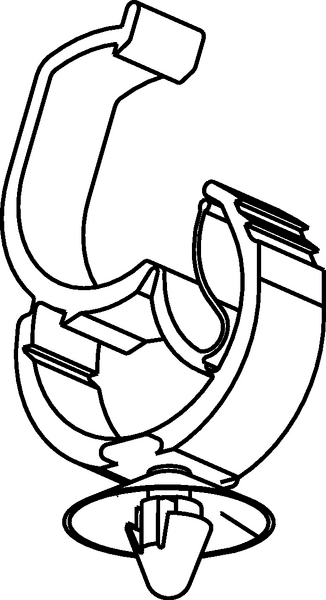

Cable clip for hole (round), ∅6.2 - 6.7 mm, Dmin=11mm, Dmax=20mm
Art.-No. 151-02881 | AHC2AH-PA66HIRHS-BK Details

  • Push and click closure for fixing of wires
  • Clip is clicked into a specific hole
  • AHC( )SS und AHC( )SB can be pushed onto a 5.0 mm stud

Request your individual offer now

Application Offering a simple and secure method of attaching cables to panels. Originally designed for the automotive industry, these products are used in a wide range of applications with sheet metal panels across various industries.
Colour Black (BK)
Key product features for faster processing, lockable, for multiple routing
Local order number 151-02881
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION AHC2AH-PA66HIRHS-BK
Pack Cont. 900pcs.
Package Content packed in Carton
Product Family AHC-Series
Product Group Fixing Elements for Tubes and Harnesses with Automatic Locking Feature
Short Description Harness clip 34x10 mm, automatic locking, high impact modified, heat stabilised, black
Type AHC2AH
Bundle Diameter max (metric) 20mm
Bundle ∅ 11-20mm
Bundle ∅ min. 11mm
Disc ∅ 20.0mm
Length (L) 32.5mm
Length (L2) 7.5mm
Weight/Unit 0.0005kg
Width (W) 10.0mm
for Hole ∅ (FH) 6.2 - 6.7 mm
for Panel Thickness min - max 0.7 - 3 mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026621272
Packaging 3 - Height (m) 0.2m
Packaging 3 - Length (m) 0.4m
Packaging 3 - Qty 900
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.024
Packaging 3 - Weight (kg) 0.87kg
Packaging 3 - Width (m) 0.3m
Packaging 4 - Height (m) 1.144m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.098
Packaging 4 - Weight (kg) 55.8kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000464
ETIM 8.0 Key EC000464
ETIM 9.0 Key EC000464
UNSPSC Key 39121702
