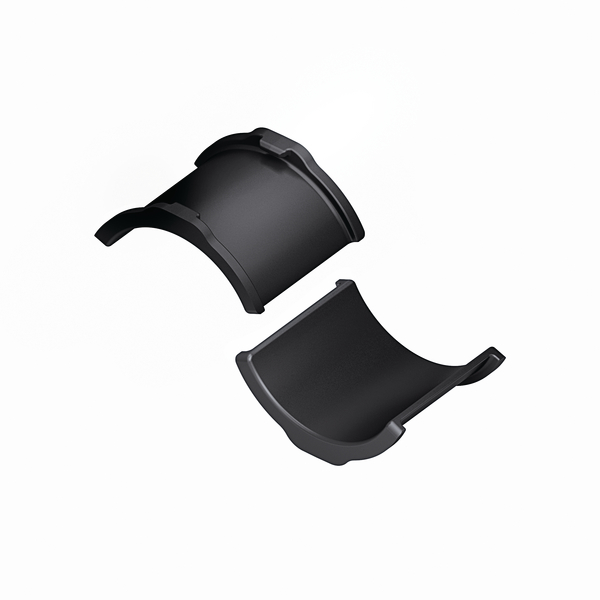

Accessory, Ratchet Clamps, black, 100pc. (RCINSERTD)
Art.-No. 151-01533 | RCINSERTD-TPE-BK Details

  • Soft inserts for an additional level of protection

Request your individual offer now

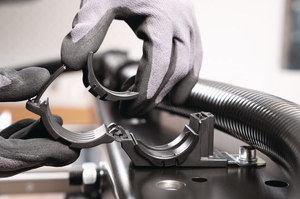

Application Soft material inserts snap precisely into the body of the clamp to provide an enhanced level of protection for applications with movement, high vibration or soft cable bundles. An integrated rib on the top of the insert prevents a lateral displacement of the corrugated tube. This provides secure fastenings of a corrugated tube with vertical and horizontal (lateral displacement at e.g. acceleration) alignment.
Colour Black (BK)
Description For D-Series
Fixation Method Others
Local order number 151-01533
Material Thermoplastic Elastomer (TPE)
PART DESCRIPTION RCINSERTD-TPE-BK
Pack Cont. 100pc.
Package Content packed in Bag
Product Family Protection Inserts
Product Group Ratchet P-Clamp Accessories
Short Description Protection profile, TPE, black
Type RCINSERTD
Variant Rubber profile
Bundle Diameter max (metric) 47.0mm
Bundle ∅ 32.0-47.0mm
Bundle ∅ min. 32.0mm
Weight/Unit 0.005923kg
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +90 °C
Plenum Rating AH-2
ROHS compliant Yes
Specifications
UL Listed (US and Canada) Yes
UL Listed (US and Canada) Yes
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UL-File Number E64139
UV-Stabilised Yes
Country of Origin US
Customs Number 39269097
GTIN-13 / EAN 4031026545035
Packaging 1 - Height (m) 0.085m
Packaging 1 - Length (m) 0.24m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00347
Packaging 1 - Weight (kg) 0.592301kg
Packaging 1 - Width (m) 0.17m
Packaging 3 - Height (m) 0.1508125m
Packaging 3 - Length (m) 0.4365625m
Packaging 3 - Qty 300
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0176
Packaging 3 - Weight (kg) 2.116903kg
Packaging 3 - Width (m) 0.2667m
Packaging 4 - Height (m) 1.201m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 12600
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.153
Packaging 4 - Weight (kg) 109.91kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC002935
ETIM 8.0 Key EC002935
ETIM 9.0 Key EC002935
UNSPSC Key 39121702
