31/10/2024

Label, white, laser print, 8.47x25.40mm, 5000pcs.
Art.-No. 594-71101 | TAG155LA4-1101-WH Details

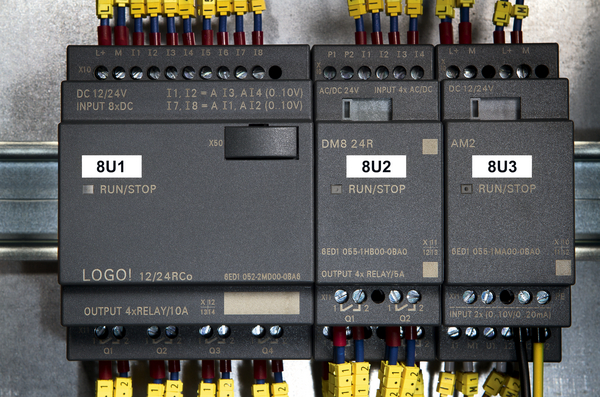

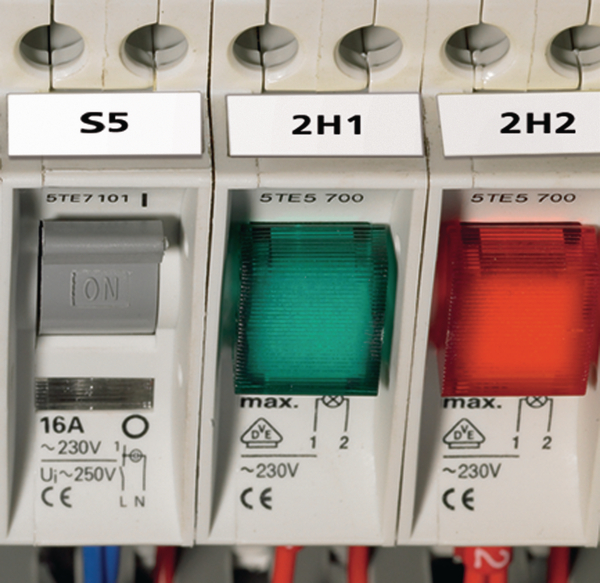

  • White rating labels for component marking as well as for control cabinets
  • For use on flat and smooth surfaces

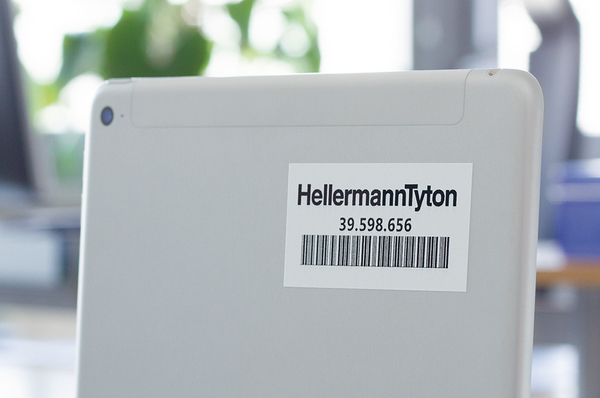

  • Crisp and clear text, barcodes and graphics
  • Simple and efficient label design and printing with TagPrint Pro labelling software
  • Templates available from www.hellermanntyton.com for those wishing to use MS Word
  • Clear protective box to ensures labels stay as good as new
Show more

Request your individual offer now

Application Used where clarity of print is most important and is ideally suited for printing barcodes and high definition graphics. A range of sizes and materials are available to suit most cable marking and asset identification needs. For problem-free printing, we recommend our easy to use windows based Tagprint Pro software program, which comes pre-loaded with all our standard label templates so you can start producing labels immediately.
Application Method The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance.
Chem. Material Properties Excellent resistance against water, alcohol, most oils, lubricants, fuels, aliphatic solvents, weak acid, salts, alkalis and UV light.
Colour White (WH)
Local order number TAG155LA4-1101-WH
Material Type 1101, Polyester, white (1101)
PART DESCRIPTION TAG155LA4-1101-WH
Pack Cont. 5000pcs.
Package Content packed in Pack

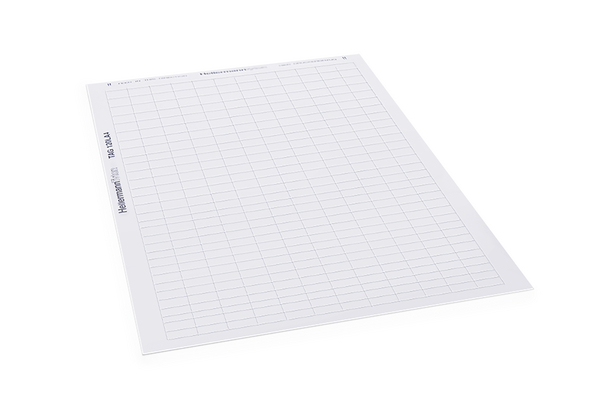

Paper Format A4
Product Family Helatag 1101 (White)
Product Group Labels for control panel identification, laser
Self adhesive (Yes/No) Yes
Short Description Labels for control panel identification, laser 25.4x8.47 mm white
Type TAG155LA4

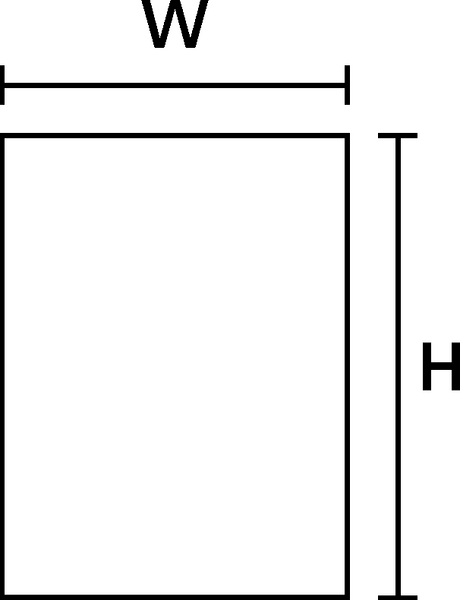

HR 25.40mm
Height (H) 8.47mm
Print Method laser print
Thickness of Adhesive (TA) nom. 24µm
Thickness of Foil 55
Thickness of foil test method ISO 534
VR 8.47mm
Weight/Unit 0.000013kg
Width (W) 25.40mm
Width of Liner (WL) 210.00mm
Adhesive Acrylic
Curing Temperature from 0 °C
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
Initial tack 13N
Initial tack FINAT FTM 9
Operating Temperature -40 °C to +150 °C
Pre-Printed No
ROHS compliant Yes
Shear strength 1000min
Shear strength test method FINAT FTM 8
Shelf Life Minimum 1 year upon receipt / maximal 4 years after production date.
Specifications
UL Recognized (US and Canada) Yes
Country of Origin DE
Customs Number 39199080
GTIN-13 / EAN 4031026294513
Labels per Row 7pcs.
Labels per Sheet 231pcs.
Packaging 1 - Height (m) 0.017m
Packaging 1 - Length (m) 0.315m
Packaging 1 - Qty 5000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00127
Packaging 1 - Weight (kg) 0.065001kg
Packaging 1 - Width (m) 0.238m
Packaging 3 - Height (m) 0.21m
Packaging 3 - Length (m) 0.32m
Packaging 3 - Qty 60000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0168
Packaging 3 - Weight (kg) 1.28kg
Packaging 3 - Width (m) 0.25m
Packaging 4 - Height (m) 1.194m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 2700000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.146
Packaging 4 - Weight (kg) 78.6kg
Packaging 4 - Width (m) 0.8m
Sheets per Pack 22pcs.
Storage Temperature +15 °C to +25 °C
Storage conditions 45% ±5% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness., Must be stored in a dark place.
ETIM 7.0 Key EC001288
ETIM 8.0 Key EC001288
ETIM 9.0 Key EC001288
