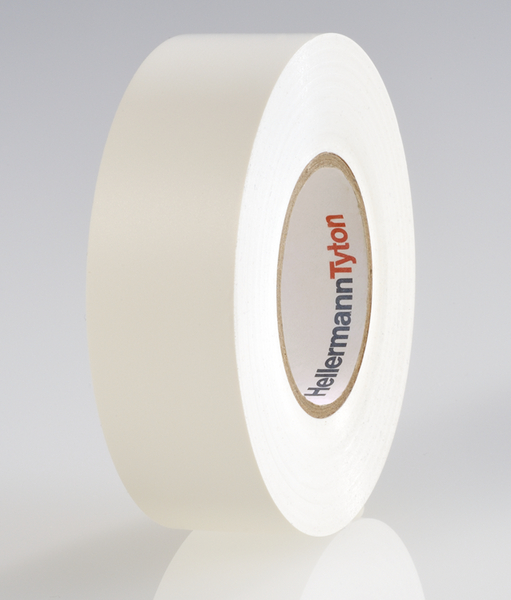

PVC Electrical Insulation Tape 19mm x 20m white
Art.-No. 710-00156
| HTAPE-FLEX15-19x20-PVC-WH
|
Details
- Vinyl electrical tape in many different colours
- Used for insulation, protection, fixing, maintenance, colour coding and more
- Good resistance to abrasion, sunlight, moisture, chemicals and varying weather conditions
- Highly flexible with outstanding adhesion performance
- Harnessing of wires and cables
- Suitable for mechanical and electrical applications up to 1 kV
- VDE approved according to IEC 60454-3-1-6/F-PVCP/90
- Flame retardant according to IEC 60454-2
Request your individual offer now
Request quote
More products in this product group:
Application | Primary electrical insulation for all wire and cable splices up to 1 kV. Protective jacketing for low, medium and high voltage splices. Wrapping of wire harnesses and cables. Used for indoor and outdoor applications. |
Colour | White (WH) |
Material | Polyvinylchloride (PVC) |
PART DESCRIPTION | HTAPE-FLEX15-19x20-PVC-WH |
Pack Cont. | 20m |
Package Content packed in | Pack |
Product Family | HelaTape Flex 15 |
Product Group | Vinyl Electrical Tapes – Commercial Grade Vinyl Electrical Tape |
Short Description | PVC Electrical Insulation Tape 19mm x 20m white |
Type | HTAPE-FLEX15-19x20 |
Adhesion to Backing | 2.0N/10 mm |
Adhesion to Steel | 2.2N/10 mm |
Breaking Strength | 28N/10 mm |
Dielectric Strength | 45kV/mm |
ELV compliant Dir. Art. 4 (2) | YES |
Elongation at break | 200 % |
Hazardous Goods | No |
Insulating (Yes/No) | Yes |
Operating Temperature | -10 °C to +90 °C |
ROHS compliant | Yes |
Self extinguishing | Yes |
Shelf Life | 5 years |
Specifications | |
Specifications | IEC 60454-3-1-7/F-PVCP/90 |
Suitable for high voltage (Yes/No) | No |
Tensile Strength | 19.5N/mm² |
|
|
Country of Origin | CN |
Customs Number | 39191012 |
GTIN-13 / EAN | 4031026479897 |
Packaging 1 - Height (m) | 0.02m |
Packaging 1 - Length (m) | 0.075m |
Packaging 1 - Qty | 1 |
Packaging 1 - Type | Reel |
Packaging 1 - Volume (m³) | 0.00011m³ |
Packaging 1 - Weight (kg) | 0.081496kg |
Packaging 1 - Width (m) | 0.075m |
Packaging 2 - Height (m) | 0.216m |
Packaging 2 - Length (m) | 0.3048m |
Packaging 2 - Qty | 10 |
Packaging 2 - Type | Pack |
Packaging 2 - Volume (m³) | 0.0176m³ |
Packaging 2 - Weight (kg) | 814kg |
Packaging 2 - Width (m) | 0.267m |
Packaging 3 - Height (m) | 0.215m |
Packaging 3 - Length (m) | 0.395m |
Packaging 3 - Qty | 100 |
Packaging 3 - Type | Carton |
Packaging 3 - Volume (m³) | 0.014m³ |
Packaging 3 - Weight (kg) | 8.3696kg |
Packaging 3 - Width (m) | 0.165m |
Packaging 4 - Height (m) | 1.004m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 4800 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 0.964m³ |
Packaging 4 - Weight (kg) | 422.741kg |
Packaging 4 - Width (m) | 0.8m |
Storage Temperature | +23 °C |
Storage conditions | 65% relative humidity. |
