Heat Shrinkable Tubing 3:1 Kit including different colours and handy sizes
Art.-No. 380-03005 | ShrinKit 321 Universal Basic-PO-X-MIX Details

  • Compact and handy kit
  • Black and coloured tubing
  • Available in a wide size range of 3 mm to 18.0 mm
  • 177 precut pieces in five sizes

Request your individual offer now

Application With ShrinKit 321 HellermannTyton has set a new standard in heat shrink tubing: ShrinKit tubings cover many applications with their ideal shrink ratio of 3:1.
Application Method Use hot air tool
Colour Black (BK), Blue (BU), Red (RD), White (WH), Green-Yellow (GNYE)

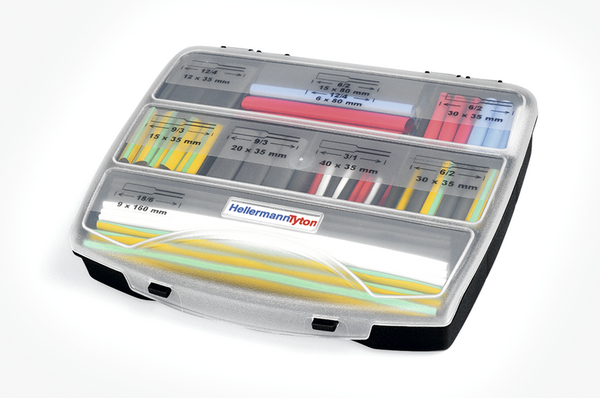

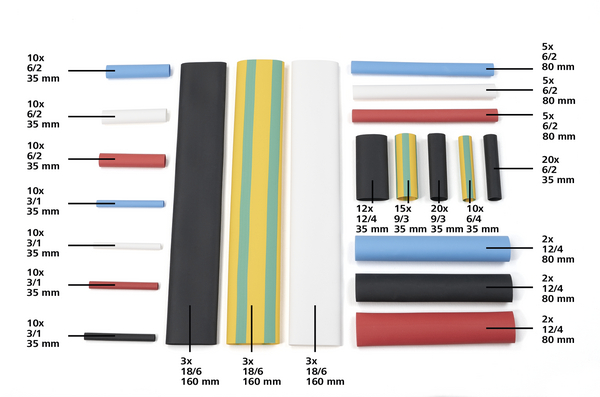

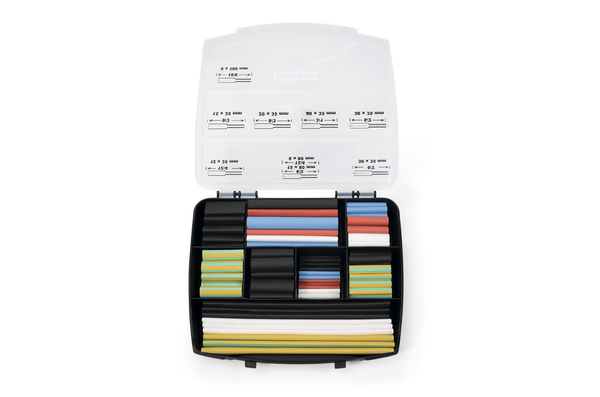

Content This compact kit contains a selection of widely used coloured tubing in five sizes and five colours in different lengths. The kit contains 177 pieces in total.
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION ShrinKit 321 Universal Basic-PO-X-MIX
Pack Cont. 1Set
Package Content packed in kit
Printable No
Product Family ShrinKit 321 Universal Basic
Product Group Heat Shrinkable Tubing 3:1 in a Kit
Short Description Heat Shrinkable Tubing 3:1 Kit including different colours and handy sizes
Shrink Ratio 3:1
Type ShrinKit 321 Universal Basic
Variant Thin-Wall
With inner glue (Yes/No) No
Longitudinal Change After Shrinkage +5%/-10% max.
Weight/Unit 0.159kg
CE Certification No
CSA Certified No
Dielectric Strength 20kV/mm
Dielectric Strength test method ASTM D2671
ELV compliant Dir. Art. 4 (2) YES
Elongation at break 600%
Halogen-free No
Hazardous Goods No
Insulation Class B (VDE 0530)
Minimum Shrink Temperature +90 °C
Operating Temperature -55 °C to +135 °C
ROHS compliant Yes
Self extinguishing Yes
Specifications
Tensile Strength 14MPa
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
Country of Origin PL
Customs Number 39173200
GTIN-13 / EAN 4031026325804
Packaging 1 - Height (m) 0.038m
Packaging 1 - Length (m) 0.19m
Packaging 1 - Qty 1
Packaging 1 - Type Carton
Packaging 1 - Volume (m³) 0.00137
Packaging 1 - Weight (kg) 0.78kg
Packaging 1 - Width (m) 0.19m
Packaging 3 - Height (m) 0.18m
Packaging 3 - Length (m) 0.42m
Packaging 3 - Qty 22
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0302
Packaging 3 - Weight (kg) 17.66kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.224m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 528
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.175
Packaging 4 - Weight (kg) 444.84kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC001049
ETIM 8.0 Key EC001049
ETIM 9.0 Key EC001049
UNSPSC Key 39121723
