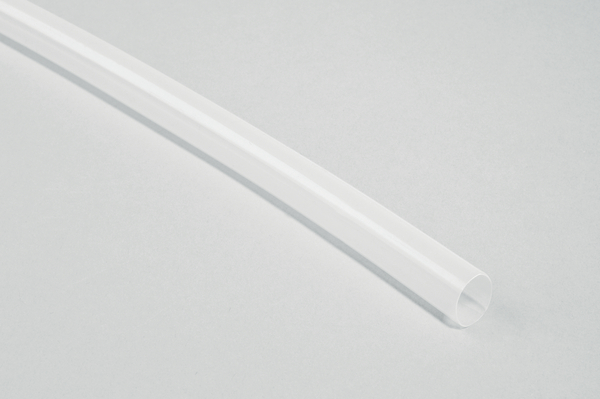

Heat Shrinkable Tubing 2:1 PTFE transparent in a length of 1.22m 9.4/5.69
Art.-No. 336-00949
| TFE2-4-PTFE-CL
|
Details
- PTFE heat shrink tubing
- Very high temperature resistance
- Extra thin wall translucent tubing
- High abrasion resistance and good resistance against aggressive chemicals
- Available in either 2:1 (TFE2) or 4:1 (TFE4) shrink ratios
Request your individual offer now
Request quote
More products in this product group:
Application | TFE is ideal for high temperature applications, when resistance to aggressive fluids is required or a very thin walled tubing is needed, for example in pH-measuring instruments. TFE tubing is also used to reduce movement due to friction, covering cylinders for example. |
Colour | Transparent (CL) |
Local order number | TFE2-4 |
Material | Polytetrafluoroethylene (PTFE) |
PART DESCRIPTION | TFE2-4-PTFE-CL |
Pack Cont. | 25pcs. |
Package Content packed in | pcs. |
Printable | No |
Product Family | TFE2 2:1 |
Product Group | Heat Shrinkable Tubing - PTFE |
Short Description | Heat Shrinkable Tubing 2:1 PTFE transparent in a length of 1.22m 9.4/5.69 |
Shrink Ratio | 2:1 |
Size | 4 |
Type | TFE2-4 |
Variant | Thin-Wall |
With inner glue (Yes/No) | No |
Dielectric Strength | 40kV/mm |
Dielectric Strength test method | DIN 53481 |
ELV compliant Dir. Art. 4 (2) | YES |
Elongation at break | 500% |
Halogen-free | No |
Hazardous Goods | No |
Limited Fire Hazard | No |
Minimum Shrink Temperature | +330 °C |
Operating Temperature | -65 °C to +260 °C |
ROHS compliant | Yes |
Specifications | |
UL Recognized (US and Canada) | No |
Volume Resistance | 10¹⁸ Ω cm |
Volume Resistance test method | DIN IEC 93 / DIN IEC 167 |
|
|
Country of Origin | DE |
Customs Number | 39173200 |
GTIN-13 / EAN | 4031026149516 |
Packaging 1 - Height (m) | 0.03m |
Packaging 1 - Length (m) | 1.3m |
Packaging 1 - Qty | 25 |
Packaging 1 - Type | Bag |
Packaging 1 - Volume (m³) | 0.00566m³ |
Packaging 1 - Weight (kg) | 0.500001kg |
Packaging 1 - Width (m) | 0.145m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Type | pallet |
Packaging 4 - Width (m) | 0.8m |
