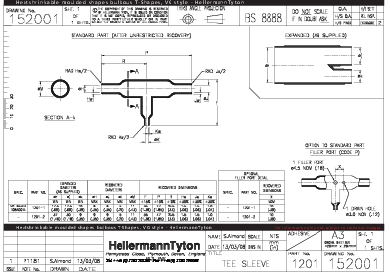

T-Shapes, VG style/MIL style
Art.-No. 412-01019 | 1201-1-G-PO-X-BK Details

Request your individual offer now

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool H6100, CHG900
Colour Black (BK)
Local order number 1201-1-G
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 1201-1-G-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 1200 Series
Product Group T-Shapes, VG style/MIL style
Shrink Ratio up to 3:1
Type 1201-1-G
Variant For 2-core cables
Flexibility Semi rigid
HW ± 20% 1.5mm
HW ± 30% 1.5mm
JW ± 20% 1.5mm
JW ± 30% 1.5mm
KW ± 20 % 1mm
M nom 11mm
P ± 10% 47.5mm
R ± 10% 23.6mm
S ± 10% 23.6mm
Weight/Unit 0.003kg
∅H max b 8.9mm
∅H min a 17.7mm
∅J max b 8.9mm
∅J min. a 17.7mm
∅K max. b 5.1mm
∅K min. a 10.1mm
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Minimum Shrink Temperature - °C +135 °C
Nato number 5970-99-701-8434
Operating Temperature -75 °C to +150 °C
ROHS compliant Yes
Shelf Life 5 years
Specifications
Country of Origin GB
GTIN-13 / EAN 5022660418129
Packaging 1 - Height (m) 0.040m
Packaging 1 - Length (m) 0.160m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00064
Packaging 1 - Weight (kg) 0.003001kg
Packaging 1 - Width (m) 0.100m
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
