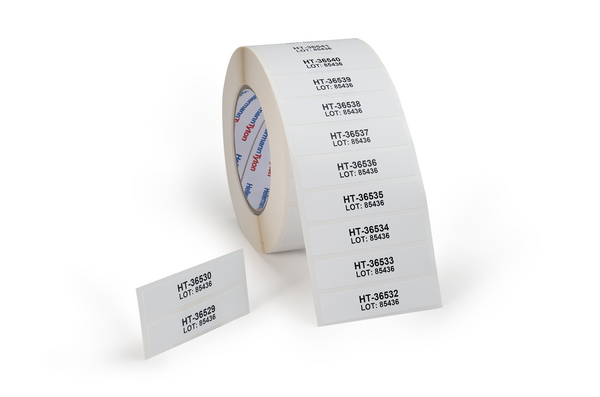

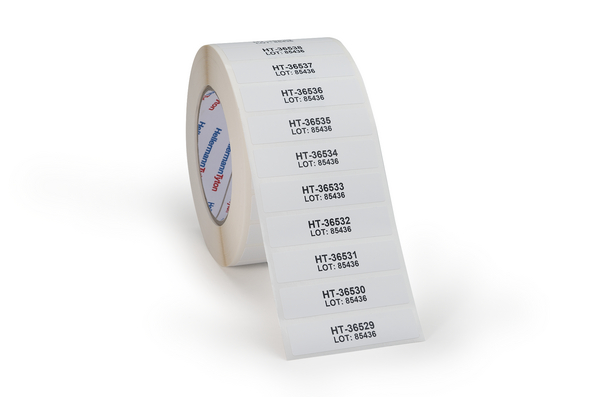

Label, white, thermal transfer print, 21.00x26.00mm, 2500pcs.
Art.-No. 596-12257 | TAG26-21TD2-892-WH Details

  • Suited to the slightly rough surfaces of IT ties and IMP/IT plates
  • Adheres to rounded surfaces
  • Rounded corners ensure better long term durability of adhesion
  • White labels give excellent contrast

Request your individual offer now

e-Learning

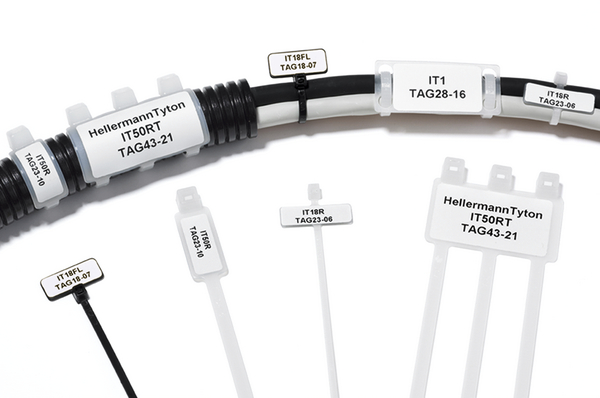

Application These labels are specially tailored to the sizes used in the IT marking tie and IMP/IT plates. The flexible material sticks to the marking tie or tag, even on rounded surfaces. Print with HellermannTyton’s premium range of thermal transfer printers and ribbons for optimum print results. Using unique numbering, graphics or barcodes the labels give excellent asset identification possibilities. This solution produces professional marking of tubes, pipes, cables and other parts.
Application Method The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance.
Chem. Material Properties Good resistance against water, oils and most solvents.
Colour White (WH)
For Size IT50RD
Local order number TAG26-21TD2-892-WH
Material Type 892, Vinyl, white (892)
Mech. Material Properties Permanent adhesive, suitable for critical surfaces like low energy surfaces.
PART DESCRIPTION TAG26-21TD2-892-WH
Pack Cont. 2500pcs.
Package Content packed in Reel
Product Family Helatag 892
Product Group Labels for IT ties and IMP plates, thermal transfer
Self adhesive (Yes/No) Yes
Short Description Labels for IT ties, IMP plates and tags 26x21 mm white
Type TAG26-21TD2
HR 28.0mm
Height (H) 21.00mm
Print Method thermal transfer print
Thickness of Foil 83
Thickness of foil test method ASTM D3652-83
VR 24.38mm
Width (W) 26.00mm
Width of Liner (WL) 57.00mm
Adhesive Acrylic
Curing Temperature from 0 °C
ELV compliant Dir. Art. 4 (2) YES
Halogen-free No
Hazardous Goods No
Initial tack 610g/cm²
Initial tack ASTM D2979-71
Operating Temperature -40 °C to +80 °C
Pre-Printed No
ROHS compliant Yes
Recommended Ribbon Type TT822OUT
Shear strength 5h
Shear strength test method ASTM D3654
Shelf Life Minimum 1 year upon receipt / maximal 2 years after production date.
Specifications
Country of Origin DE
Customs Number 39199080
GTIN-13 / EAN 4031026523255
Labels per Row 2pcs.
Packaging 1 - Height (m) 0.057m
Packaging 1 - Length (m) 0.11m
Packaging 1 - Qty 2500
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.00069
Packaging 1 - Weight (kg) 0.3kg
Packaging 1 - Width (m) 0.11m
Packaging 3 - Height (m) 0.27m
Packaging 3 - Length (m) 0.48m
Packaging 3 - Qty 60000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0492
Packaging 3 - Weight (kg) 7.7kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.225m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 960000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.176
Packaging 4 - Weight (kg) 144.2kg
Packaging 4 - Width (m) 0.8m
Storage Temperature +21 °C
Storage conditions 50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness.
ETIM 7.0 Key EC001288
ETIM 8.0 Key EC001288
ETIM 9.0 Key EC001288
UNSPSC Key 39121702
