YE | Details

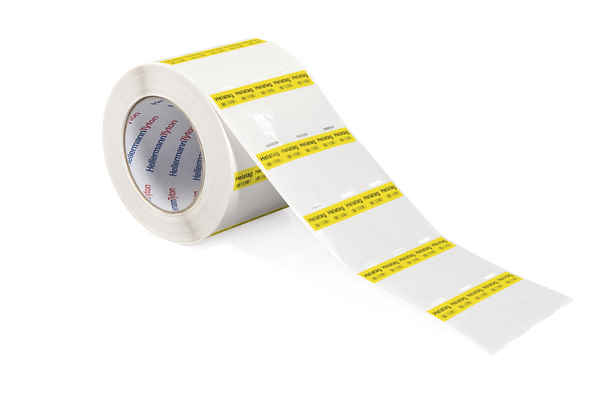

High temperature self-laminating labels with an inscription field
Extremely scratch and chemical resistant
Protective laminating foil ensures optimal protection against humidity, dirt, debris, and mechanical abrasion
Survives 5 years external weathering in central European climate

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Application	This self-laminating label consists of a printable area with a protective laminate ensure the printed text is shielded from negative environmental influences - such as humidity, dirt, debris and mechanical abrasion. It is ideally suited for wire and cable marking in both high temperature and outside environments, particular used in industry as well as military technology.
Application Method	The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance.
Chem. Material Properties	Excellent resistance against water, UV radiation, weather influence and solvents based on petroleum.
Colour	Yellow (YE), Transparent (CL)
Colour Marking Field	Yellow (YE)
Fixation Method	Pasting / Stick
Material	Type 323, Polyvinylidene Fluoride (323)
Mech. Material Properties	permanent adhesive, extremely scratch resistant
PART DESCRIPTION	TAG3TD3-323-CL/YE
Pack Cont.	1000pcs.
Package Content packed in	pcs.
Product Family	Material 320 (White-Clear) high temperature
Product Group	Self-laminating labels, thermal transfer
Self adhesive (Yes/No)	Yes
Short Description	Self-laminating labels, thermal transfer 25.40x25.40x95.25 mm yellow-transparent
Type	TAG3TD3
Variant	Roller form
With label space	Yes


Bundle Diameter max (metric)	22.20mm
Bundle ∅	10.00-22.20mm
Bundle ∅ min.	10.00mm
HR	25.40mm
Height (H)	25.40mm
Height (H2)	95.25mm
Print Method	thermal transfer print
Thickness of Foil	25
Thickness of foil test method	ASTM D3652-83
VR	101.60mm
Weight/Unit	0.000493kg
Width (W)	25.40mm
Width of Liner (WL)	82.00mm

Adhesive	Acrylic
Curing Temperature	from +10 °C
ELV compliant Dir. Art. 4 (2)	YES
Flammability	UL 94 V0
Halogen-free	Yes
Hazardous Goods	No
Initial tack	400g/cm²
Initial tack	ASTM D2979-71
Operating Temperature	-40 °C to +140 °C
ROHS compliant	Yes
Recommended Ribbon Type	TT932DOUT
Shear strength	100h
Shear strength test method	ASTM D3654
Shelf Life	Minimum 1 year upon receipt / maximal 2 years after production date.
Specifications
UL Recognized (US and Canada)	Yes


Country of Origin	DE
Customs Number	39199080
GTIN-13 / EAN	4031026215006
Labels per Row	3pcs.
Packaging 1 - Height (m)	0.15m
Packaging 1 - Length (m)	0.165m
Packaging 1 - Qty	1000
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.00223m³
Packaging 1 - Weight (kg)	0.493001kg
Packaging 1 - Width (m)	0.09m
Packaging 3 - Height (m)	0.24m
Packaging 3 - Length (m)	0.55m
Packaging 3 - Qty	12000
Packaging 3 - Type	Carton
Packaging 3 - Volume (m³)	0.0515m³
Packaging 3 - Weight (kg)	6.416kg
Packaging 3 - Width (m)	0.39m
Storage Temperature	+21 °C
Storage conditions	50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness.
