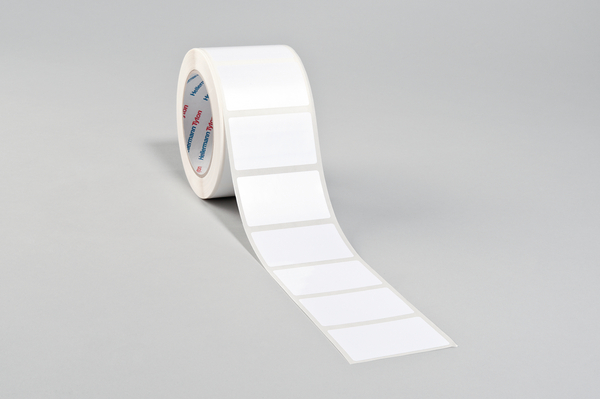

Label, white, thermal transfer print, 25.40x50.80mm, 2000pcs.
Art.-No. 596-12673
| TAG73TD1-1206-WH
|
Details
- Ideal for machinery operating in high temperature areas (up to +150 °C)
- For applications on flat surfaces
- Chemical resistant polyester foil
- For permanent and ageing-resistant identification
- Barcodes and alphanumeric text remain pin sharp on this high quality material
Request your individual offer now
Request quote
More products in this product group:

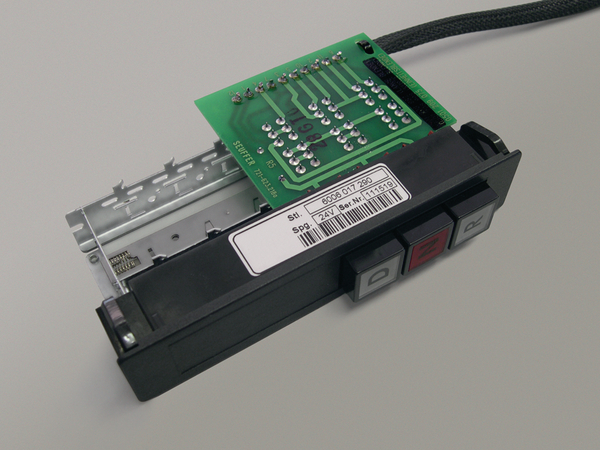

| Application | This label is scratch-resistant and is ideal for usage as identification or name plate in industrial environments. The high temperature range suits a wide range of applications on flat surfaces. The adhesive is also suitable for critical surfaces like plastic and paint. Designing and printing labels is simple and users can quickly print out professional labels in a matter of moments when using TagPrint Pro labelling software. |
| Application Method | The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance. |
| Chem. Material Properties | Excellent resistance to water, alcohol, most oils, greases, fuel, aliphatic solvents, weak acids, salts and alkalis. |
| Colour | White gloss (GSWH) |
| Local order number | AG73TD1-1206-WH |
| Material | Type 1206, Polyester (1206) |
| Mech. Material Properties | permanent adhesive, suitable for critical surfaces |
| PART DESCRIPTION | TAG73TD1-1206-WH |
| Pack Cont. | 2000pcs. |
| Package Content packed in | Reel |
| Product Family | Material 1206 (White) |
| Product Group | Asset identification label, thermal transfer |
| Self adhesive (Yes/No) | Yes |
| Short Description | Asset Identification Label for Thermal Transfer Printing 50.8x25.4 mm white |
| Type | TAG73TD1 |
Download
| Adhesive | Acrylic |
| Curing Temperature | from 0 °C |
| ELV compliant Dir. Art. 4 (2) | YES |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Initial tack | 13N |
| Initial tack | FINAT FTM 9 |
| Operating Temperature | -40 °C to +150 °C |
| Pre-Printed | No |
| ROHS compliant | Yes |
| Recommended Ribbon Type | TT822OUT |
| Shear strength | 1000min |
| Shear strength test method | FINAT FTM 8 |
| Shelf Life | Minimum 1 year upon receipt / maximal 4 years after production date. |
| Specifications |
|
| UL Recognized (US and Canada) | Yes |
| Country of Origin | DE |
| Customs Number | 39199080 |
| GTIN-13 / EAN | 4031026296968 |
| Labels per Row | 1pc. |
| Packaging 1 - Height (m) | 0.116m |
| Packaging 1 - Length (m) | 0.15m |
| Packaging 1 - Qty | 2000 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00271m³ |
| Packaging 1 - Weight (kg) | 0.275001kg |
| Packaging 1 - Width (m) | 0.156m |
| Storage Temperature | +15 °C to +25 °C |
| Storage conditions | 45% ±5% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness., Must be stored in a dark place. |
