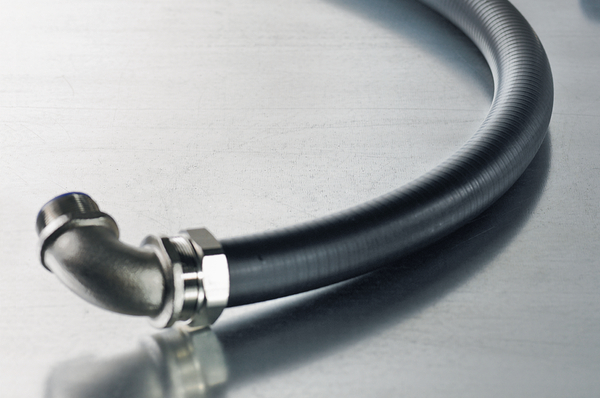

LTS Galvanised Steel Conduit with PVC Cover grey ø25mm reel 25m
Art.-No. 166-31919 | LTS25-GS/PVC-GY Details

  • Liquid-tight (IP68 and IP69k with LTS fittings)
  • High compression, tensile and impact strength
  • Good flexibility
  • Smooth outer cover does not wrinkle when bent
  • Good resistance to acids, petrol, oils and greases
  • UV-resistant, suitable for outdoor use
  • Colour: black
Show more

Request your individual offer now

Application Machine tools or outdoor installations, wherever liquid-tight (IP68) is a requirement.
Colour Grey (GY)
Conduit Model with smooth PVC coating
Material Galvanised Steel (GS), Polyvinylchloride (PVC)
PART DESCRIPTION LTS25-GS/PVC-GY
Pack Cont. 25m
Package Content packed in Reel
Product Family LTS Galvanised Steel Conduit, PVC Cover
Product Group Metallic conduits with liquid-tight cover
Short Description LTS Galvanised Steel Conduit with PVC Cover grey ø25mm reel 25m
Type LTS25
Bending Radius min. (R) 100mm
Diameter (D) 21.0mm
Inside Ø (ID) 21.1mm
Nominal ∅ 25mm
Nominal ∅ (imperial) 1"
Outside Ø (OD) 26.4mm
Weight 503g/m
Weight/Unit 0.5kg
CE Certification Yes
ELV compliant Dir. Art. 4 (2) YES
EN61386 Classification 443340684410
Electrical characteristics Not specified
Hazardous Goods No
IP-Rating IP69k, IP68
Operating Temperature -20 °C to +105 °C
ROHS compliant Yes
Specifications
Specifications BS EN 61386-23
Country of Origin GB
Customs Number 83071000
GTIN-13 / EAN 4031026319988
Packaging 1 - Height (m) 0.23m
Packaging 1 - Length (m) 0.48m
Packaging 1 - Qty 25
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.05299
Packaging 1 - Weight (kg) 12.5kg
Packaging 1 - Width (m) 0.48m
Packaging 3 - Height (m) 0.23m
Packaging 3 - Length (m) 0.48m
Packaging 3 - Qty 25
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.053
Packaging 3 - Weight (kg) 13.0kg
Packaging 3 - Width (m) 0.48m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 250
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 151.0kg
Packaging 4 - Width (m) 0.8m
Reel Length 25m
ETIM 7.0 Key EC001179
ETIM 8.0 Key EC001179
ETIM 9.0 Key EC001179
