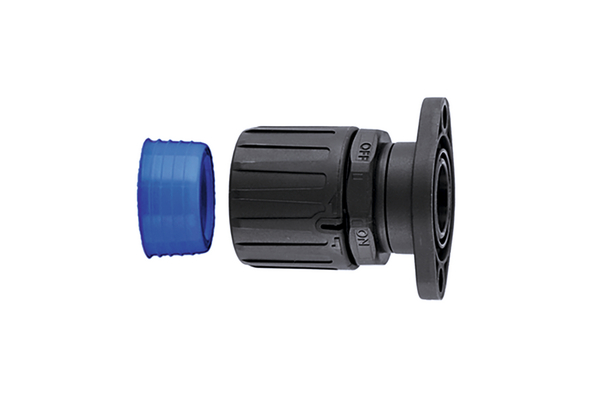

Straight fitting with swivel flange IP68 ø34mm
Art.-No. 166-21803 | HGL34-SFL-PA66/TPE-BK Details

  • One piece, fast fit
  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus

Request your individual offer now

Application Straight swivel flange with conduit seal and washer. Fulfils IP66, IP67, IP68 and IP69k.
Brass Thread (Y/N) No
Colour Black (BK)
Local order number HGL34-SFL-PA66/TPE-BK-10ST
Material Polyamide 6.6 (PA66), Thermoplastic Elastomer (TPE)
PART DESCRIPTION HGL34-SFL-PA66/TPE-BK
Pack Cont. 10pcs.
Package Content packed in Bag
Product Family HGL-SFL Straight Swivel Flange, IP68
Product Group Fittings with swivel flange
Short Description Straight fitting with swivel flange IP68 ø34mm
Strain Relief Function (Y/N) No
Swivel Thread (Y/N) No
Thread type not applicable
Type HGL34-SFL
Type of connection Snap-connection
Variant Straight

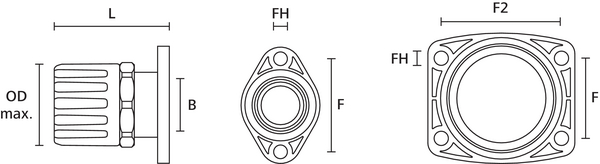

Fixing Hole Centres (F) 36.0mm
Fixing Hole Centres (F2) 54.0mm
Length (L) 55mm
Lowest inner diameter 26.5mm
Min. Bore Size (B) 26.5mm
NW ∅ 29mm
Nominal ∅ 34mm
Nominal ∅ (imperial) 1.31"
Outside ∅ max (OD max.) 51mm
Weight/Unit 0.0506kg
for Hole ∅ (FH) 6.2 mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
IP-Rating IP66, IP67, IP68, IP69k
Operating Temperature -50 °C to +135 °C
ROHS compliant Yes
Specifications
Specifications UL-Recognized
Country of Origin GB
Customs Number 39174000
GTIN-13 / EAN 4031026303581
Packaging 1 - Height (m) 0.115m
Packaging 1 - Length (m) 0.26m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00598
Packaging 1 - Weight (kg) 0.506001kg
Packaging 1 - Width (m) 0.2m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Qty 10
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Weight (kg) 0.806001kg
Packaging 2 - Width (m) 0.267m
ETIM 7.0 Key EC001176
ETIM 8.0 Key EC001176
ETIM 9.0 Key EC001176
