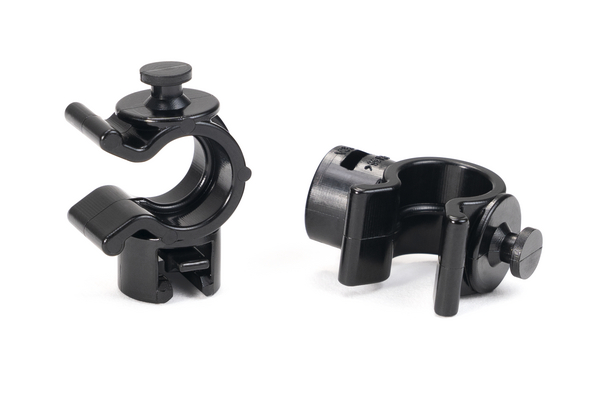

Accessory for HWBASE, HWPA-V08, Helawrap, black, 50pcs. (HWCLIP08)
Art.-No. 161-64002 | HWCLIP08-PA66HIRHS-BK Details

  • Mounts and routes Helawrap cable cover flexibly and efficiently
  • Fit snugly around the cable cover and holds it tight
  • Each clip can be joined to mounting plate or other clips of any size
  • Each clip rotates freely
  • Easily released and re-used
  • Mounting plates fixed with screws, cable ties or adhesive
Show more

Request your individual offer now

Application To complete the Helawrap cable management system various Helawrap Clips in compatible sizes are available. The mounting clips can be combined and adjusted individually. Attached to a mounting base the assembly can be screw mounted or directly sticked to the surface.
Application Method Place cables in applicator, then zip through cover sleeve.
Colour Black (BK)
Fixation Method Plug-in mounting
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION HWCLIP08-PA66HIRHS-BK
Pack Cont. 50pcs.
Package Content packed in Bag
Product Family HWClips
Product Group Acessories for retaining Helawrap Open Cable Cover
Short Description Fixing clip PA66HIRHS nominal ∅ 8mm black
Type HWCLIP08
Diameter (D) 9mm
Nominal ∅ 8.0mm
Nominal ∅ (imperial) 0.31"
Weight/Unit 0.001118kg
∅ D (imperial) 0.375"
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Melting Point +284 °F (+140 °C)
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026268552
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.275m
Packaging 1 - Qty 50
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00086
Packaging 1 - Weight (kg) 0.061426kg
Packaging 1 - Width (m) 0.125m
Packaging 3 - Height (m) 0.184m
Packaging 3 - Length (m) 0.58m
Packaging 3 - Qty 4000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0406
Packaging 3 - Weight (kg) 4.2308kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 96000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 122.76kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000368
ETIM 8.0 Key EC000368
ETIM 9.0 Key EC000368
UNSPSC Key 39131604
