01/11/2024

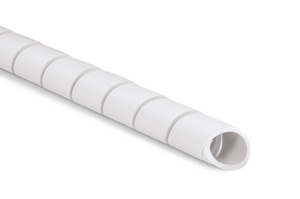

Spiral binding 5 mm - 20 mm, PE-FR, white, 30 m
Art.-No. 161-43100 | SBPEFR4-PE-FR-WH Details

  • Organises and protects cables and hoses
  • Self-extinguishing according to UL94 V2
  • Suitable for retro-fitting
  • Cables branch out at any point
  • Wide range of diameters and colours
Show more

Request your individual offer now

Application The flame-retardant properties of SBPEFR make it suitable for applications in the automobile and electrical industries, where enhanced fire protection is needed.
Colour White (WH)
Local order number 161-43100
Material Polyethylene (PEFR), Flame retardant
PART DESCRIPTION SBPEFR4-PE-FR-WH
Pack Cont. 30m
Package Content packed in Box
Product Family SBPEFR
Product Group Polyethylene Spiral Binding for enhanced flame protection
Short Description Spiral binding 5 mm - 20 mm, PE-FR, white, 30 m
Type SBPEFR4
Variant Spiral Binding
Bundle Diameter max (metric) 20mm
Bundle ∅ 5-20mm
Bundle ∅ min. 5mm
Diameter (D) 4mm
Nominal ∅ 4mm
Nominal ∅ (imperial) 0.19"
Pitch (P) 7.8mm
Wall (WT) 1.0mm
Weight/Unit 0.021kg
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2, FMVSS 302, Type B
Halogen-free No
Hazardous Goods No
Intermittent Operating Temperature +120°C
Nato number 9330-12-383-1323
Operating Temperature -60 °C to +80 °C, intermittent +120 °C
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660548963
Packaging 3 - Height (m) 0.08m
Packaging 3 - Length (m) 0.275m
Packaging 3 - Qty 30
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0058
Packaging 3 - Weight (kg) 1.13kg
Packaging 3 - Width (m) 0.265m
Packaging 4 - Height (m) 0.964m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 3570
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.925
Packaging 4 - Weight (kg) 187.35kg
Packaging 4 - Width (m) 0.8m
Reel Length 30m
ETIM 7.0 Key EC002604
ETIM 8.0 Key EC002604
ETIM 9.0 Key EC002604
