Fixing tie for edge, inside serrated, ∅4.0-45.0mm, grey/black, 500pcs.
Art.-No. 156-00835 | T50REC5B-PA46/PA66HIRHS-GY/BK |  Details

Cable tie with edge clip eliminates the need for drilling mounting holes, simplifying installation.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry.
    Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
    Colour Grey (GY), Black (BK)
    Description Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 1.0 to 3.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different EdgeClip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the EdgeClip family provides an excellent fastening solution.
    Fixation Method EdgeClip, sideway, assembled, 2 piece
    Identification Plate Position none
    Local order number T50REC5B-HR GY-HSB
    Material Polyamide 4.6 (PA46), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50REC5B-PA46/PA66HIRHS-GY/BK
    Pack Cont. 500pcs.
    Package Content packed in Bag
    Product Family EdgeClip-Series, 1.0 - 3.0 mm, side fixing
    Product Group 2-piece fixing ties for edges
    Releasable Closure (Yes/No) No
    Type T50REC5B
    Variant Inside Serrated
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 4.0-45.0mm
    Bundle ∅ min. 4.0mm
    Height (H) 1.2mm
    Height (H2) 15.5mm

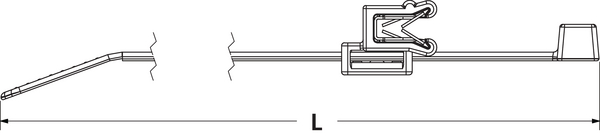

    Length (L) 200.0mm
    Length (L2) 14.0mm
    Min.Tensile Strength 225N
    Panel Thickness max. 1.0-3.0mm
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    Width (W2) 12.0mm
    for Panel Thickness min - max 1 - 3 mm
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026434964
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
