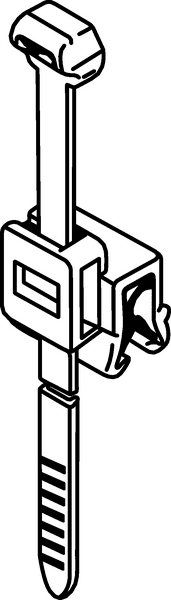

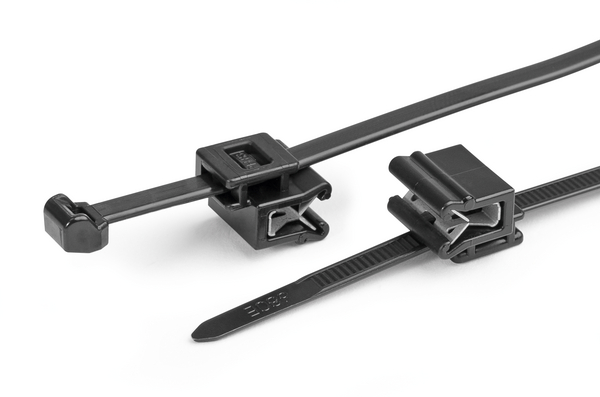

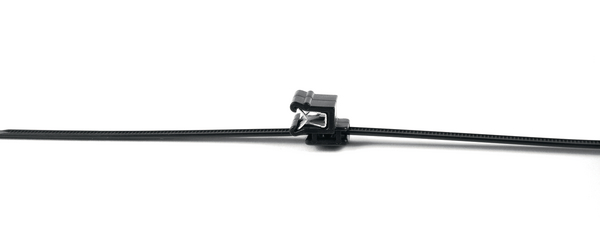

Fixing tie for edge, outside serrated, ∅4.0-45.0mm, black, 100pcs.
Art.-No. 156-03219
| T50ROSEC5A-PA66W-BK
|
Details
- Pre-assembled 2-piece fixing tie with EdgeClip
- Cable tie head can be moved after bundling
- EC9, EC10, EC21 and EC22 are for minimum bundle diameters of 1 mm
- For edges of 1 – 3 mm
More products in this product group:

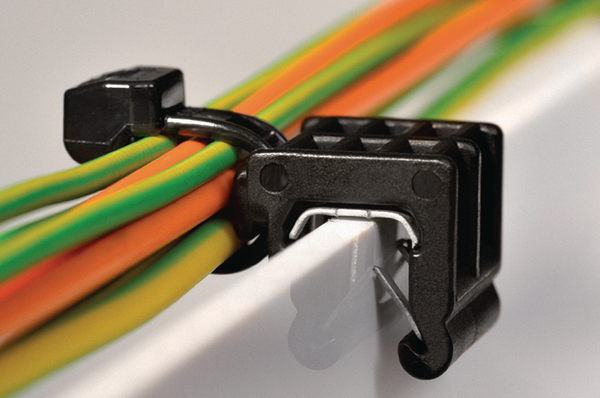

| Application | These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry. |
| Colour | Black (BK) |

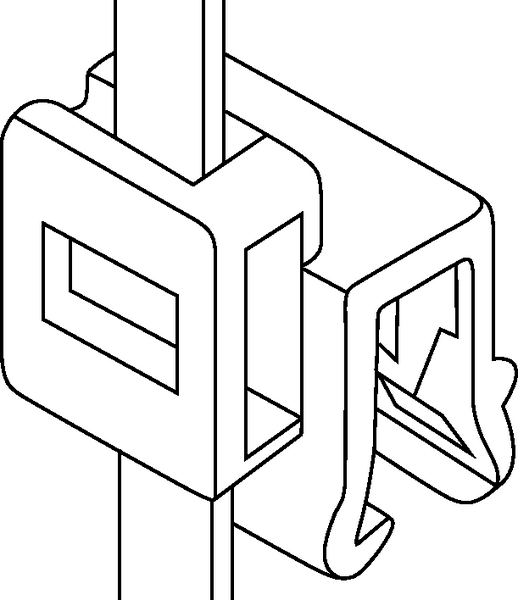

| Description | Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 1.0 to 3.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different EdgeClip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the EdgeClip family provides an excellent fastening solution. |
| Fixation Method | EdgeClip, sideway, assembled, 2 piece |
| Identification Plate Position | none |
| Local order number | T50ROSEC5A PA66W BK 100 |
| Material | Polyamide 6.6, UV-resistant (PA66W) |
| PART DESCRIPTION | T50ROSEC5A-PA66W-BK |
| Pack Cont. | 100pcs. |
| Product Family | EdgeClip-Series, 1.0 - 3.0 mm, side fixing |
| Product Group | 2-piece fixing ties for edges |
| Releasable Closure (Yes/No) | No |
| Type | T50ROSEC5A |
| Variant | Outside Serrated |
Download
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026729633 |
| Packaging 1 - Height (m) | 0.06m |
| Packaging 1 - Length (m) | 0.275m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00528m³ |
| Packaging 1 - Weight (kg) | 0.293862kg |
| Packaging 1 - Width (m) | 0.32m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Type | pallet |
| Packaging 4 - Width (m) | 0.8m |
