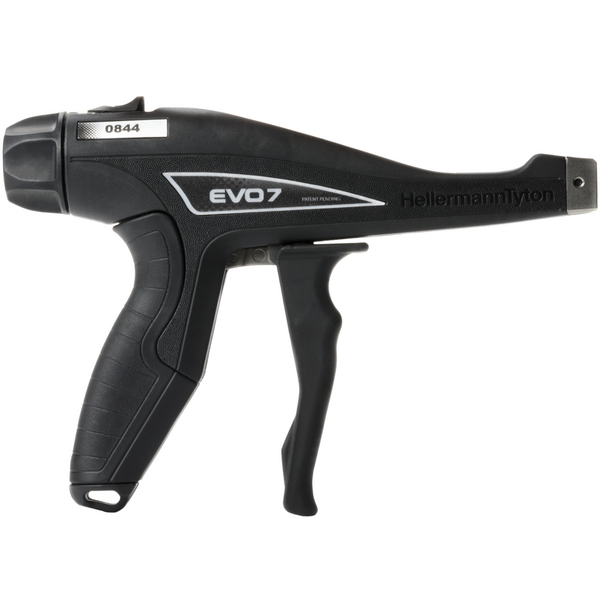

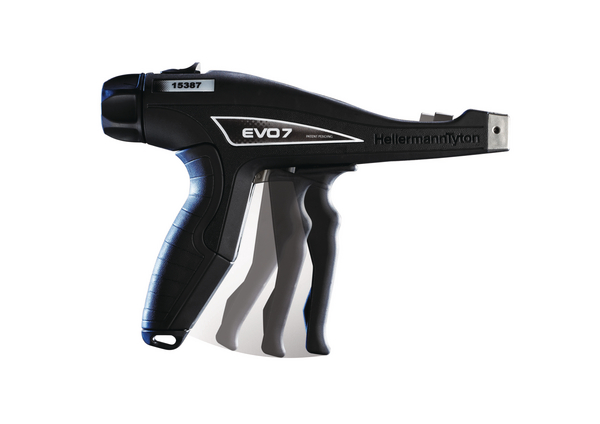

Cable tie tool for 2.5-4.8mm, manual, 0.28kg, black
Art.-No. 110-70083
| EVO7-MET/PL-BK
|
Details
- Ergonomic, slip-proof handle for a comfortable and secure grip
- Extremely low-maintenance
- Fast and precise application with minimum effort (TLC mechanism)
- Convenient and simple tension adjustment
- Extended, slim nose for use in narrow spaces
- Housing made of resilient and lightweight glass fibre-reinforced polyester
- Standard grip span (90 mm) and short grip span (80 mm) available
Request your individual offer now
Request quote
More products in this product group:
| Application | EVO 7 delivers precise tensioning and cut-off of HellermannTyton cable ties while reducing work related risks to quality, productivity and employee safety. For use in OEM applications (ie; Truck and Heavy Equipment, White Goods, Automotive), wire harness assembly and control panel building. |
| Colour | Black (BK) |
| For Cable Tie Width | 0.10-0.19" |
| For Cable Tie Width | 2.5-4.8mm |
| For Ties | T18, T30, T40, T50, T80, IT18, IT50 |
| Material | Metal (MET), Plastic (PL) |
| Operation | manual |
| PART DESCRIPTION | EVO7-MET/PL-BK |
| Pack Cont. | 1pc. |
| Package Content packed in | Carton |
| Product Family | EVO7 |
| Product Group | Manual Processing Tools |
| Short Description | Manual Tensioning Tool for Plastic Ties up to 4.8 mm strap width |
| Tool property | Manual clipping |
| Tool suitable cable tie material | Plastic |
| Type | EVO7 |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Hazardous Goods | No |
| Nato number | 5120-12-409-3857, 5120-00-781-7891 |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | CAGE Code 53421 |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| US Gov. Designation | MS90387-1, SAE-AS90387 |
| UV-Stabilised | No |
| Country of Origin | US |
| Customs Number | 82055980 |
| GTIN-13 / EAN | 4031026438535 |
| Packaging 1 - Height (m) | 0.055m |
| Packaging 1 - Length (m) | 0.235m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | Carton |
| Packaging 1 - Volume (m³) | 0.00239m³ |
| Packaging 1 - Weight (kg) | 0.78kg |
| Packaging 1 - Width (m) | 0.185m |
| Packaging 3 - Weight (kg) | 12.28kg |
