Automatic cable tie tool Dmax=100.0mm, for 4.5mm, 2.44269kg, blue
Art.-No. 102-60000 | ATS_flex-MET-BU | Details

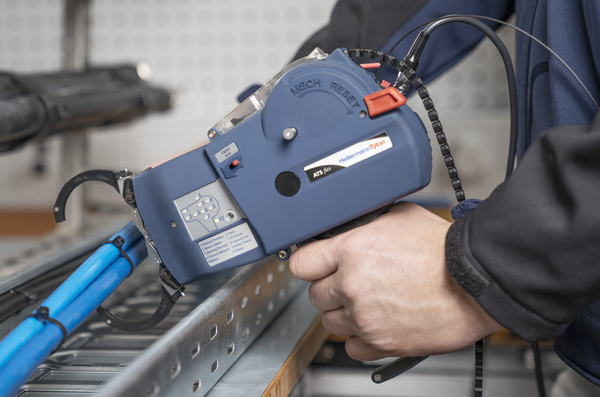

The automatic bundling tool ATS flex with different jaw sizes.

Electrically operated cable tying system (Power pack ATS flex)
Power supply through Power pack ATS flex - Input: 240/150 V a.c., 50/60 Hz; Output: 24 V d.c., max. 100 W
High quality, waste-free bundling up to Ø 100 mm with flush cut off

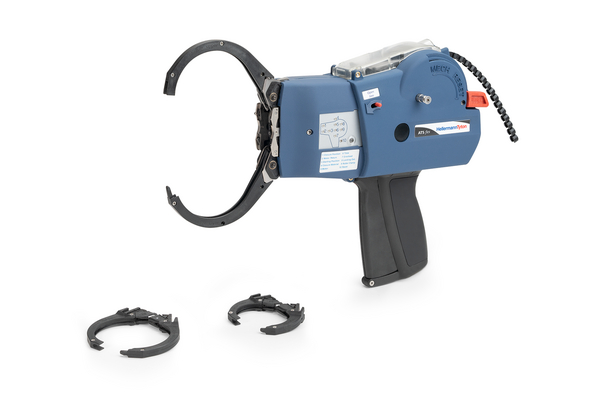

Jaws with diameters of 30, 50 and 80 mm - included in delivery,
100mm jaw size solution as accessory on request
Cycle time 1.1-2.4 seconds depending on bundle diameter
Bundle diameter mechanically detected
Integration into Bench mount kit ATS or Overhead suspension ATS possible
Integration into fully automated production lines possible
Foot part bundling with custom jaw design Ø 50 mm

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

Downloads e-Learning

More products in this product group:

Waste-free bundling up to Ø 100 mm >

Base Data

Application	The Autotool System ATS flex is an automated and electric cable tying system. It has been developed to speed up bundling processes and operates waste-free. The advantage of three quick-changeable jaw sizes allows the Autotool System ATS flex to adapt perfectly to different bundle diameters up to Ø 100 mm. With either the Bench mount kit ATS or the Overhead suspension ATS, the Autoool System ATS flex is suitable for both stationary and flexible applications. The Autotool System ATS flex can also be integrated into fully automated production lines. Custom designed jaws are available to enable bundling of foot parts on production lines.
Application Method	Stationary or flexible
Bench mount kit	Tool and tie reel stand including footpedal
Colour	Blue (BU)
Description	Autotool System ATS flex
For Cable Tie Width	4.5 - 4.5mm
For Cable Tie Width	0.18 - 0.18"
Harness board accessory HH20	Raises the bundle off the harness board at optimum height and allows the operator to eliminate handling the bundle when applying ties.
Local order number	ATS flex complete
Material	Metal (MET)
Operation	electrical
Overhead Suspender	Overhead suspension ATS and tie reel stand including balancer
PART DESCRIPTION	ATS_flex-MET-BU
Pack Cont.	1pc.
Package Content packed in	Case
Power Supply unit	Input: AC 100 V - 230V, 2.3A 50/60 Hz, Output: 24 V d.c., 100 W
Product Family	Autotool System ATS flex
Product Group	Waste-free bundling up to Ø 100 mm
Short Description	Automatic cable tying system for up to 100mm bundle diameter
Strap Thickness max.	1.2mm
Strap Thickness max.	0.05"
Tool suitable cable tie material	Plastic
Type	ATS_flex

Product Dimensions

Bundle Diameter max (metric)	100.0mm
Bundle ∅	0.0-100.0mm
Bundle ∅ min.	0.0mm
Cycle Time	1.1-2.4 sec. depending on bundle diameter
Height (H)	248mm
Length (L)	329mm
Power Supply	Electrically operated
Strap Width max.	4.5mm
Tension Setting	Adjustable
Weight/Unit	2.44269kg
Width (W)	113.8mm
