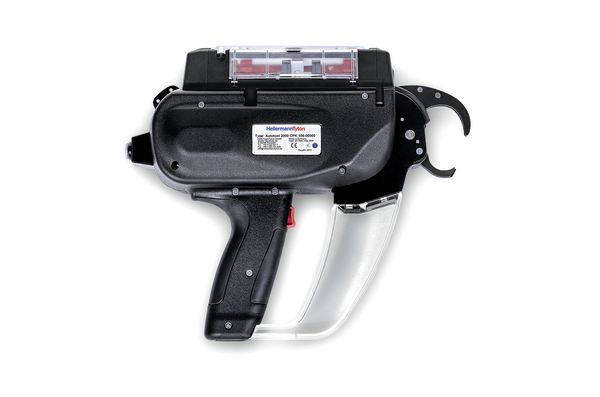

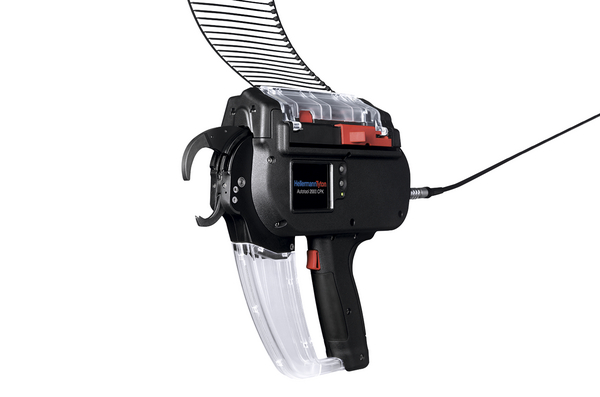

Automatic cable tie tool Dmax=20mm, for 2.5mm, 2.157kg, black
Art.-No. 106-00000
| Autotool 2000 CPK-MET/PL-BK
|
Details
This product is not available anymore.
- Electrically operated cable tying system

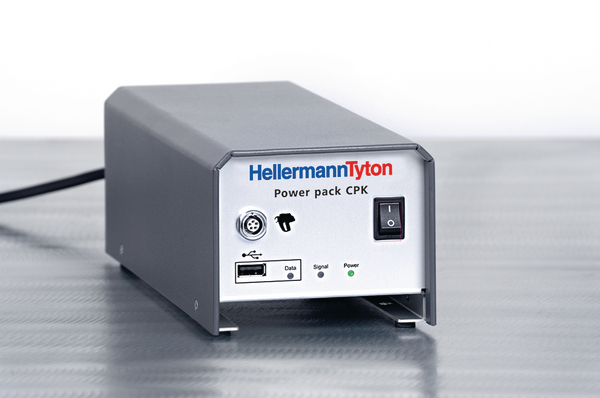

- Power supply through Power pack CPK - Input: 100-240 V a.c., 50/60 Hz; Output: 25.2 V d.c., max. 150 W
- Integration into fully automated production lines (Power pack CPK with control box necessary)
- Cycle time 0.8-1.2 sec. depending on quality and force
- Stationary and flexible use with devices possible

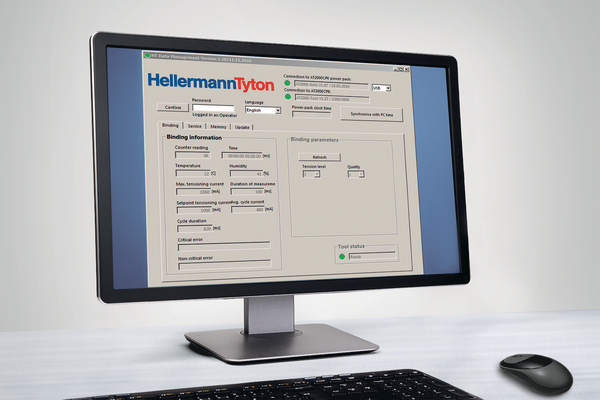

- HT Data Management CPK software (included) - for extensive data evaluation and monitoring of the tensioning process
- User-friendly menu in various languages included
- Process-reliable, constant and reproducable bundling and cutting up to Ø 20 mm

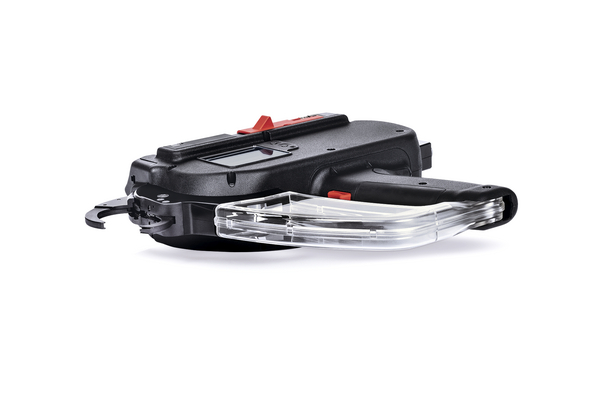

- Removable handle for space-saving integration
Request your individual offer now
Request quote
More products in this product group:
| Application Method | Stationary or flexible integrated into a fully automated production line |
| Bench mount kit | Bench mount kit CPK with foot pedal operation |
| Colour | Black (BK) |
| Description | Autotool 2000 CPK |
| For Cable Tie Width | 2.5 - 2.5mm |
| For Ties | T18RA50, T18RA1000 |
| Harness board accessory HH20 | Bundle Ø max. 20mm, stand-offs are used as spacer for an optimal bundling, Bundle height 45-25mm |
| Local order number | AT2000 CPK |
| Material | Metal (MET), Plastic (PL) |
| Operation | electrical |
| Overhead Suspender | Overhead suspension CPK |
| PART DESCRIPTION | Autotool 2000 CPK-MET/PL-BK |
| Pack Cont. | 1pc. |
| Package Content packed in | pcs. |
| Power Supply unit | Power pack CPK Input: 230/115 VAC Output: 25,2 VDC 50 W |
| Product Family | Autotool CPK hybrid |
| Product Group | Automatic bundling up to Ø 20 mm |
| Short Description | Autotool 2000 CPK |
| Tool property | Automatic cut off |
| Tool suitable cable tie material | Plastic |
| Type | Autotool 2000 CPK |
| Wattage | 50W |
| Bundle Diameter max (metric) | 20mm |
| Bundle ∅ | 0.7-20mm |
| Bundle ∅ min. | 0.7mm |
| Cable Tie Head Height (metric) | 4.2mm |
| Cable Tie Head Width (metric) | 4.6mm |
| Cycle Time | 0.65-1.0 sec. depending on quality and force |
| Height (H) | 243.0mm |
| Length (L) | 285.0mm |
| Min.Tensile Strength | 80N |
| Operational Voltage | 25,2 V |
| Power Supply | Electronically operated |
| Strap Width max. | 2.5mm |
| Tension Setting | Adjustable |
| Weight/Unit | 2.157kg |
| Width (W) | 65.0mm |
Download
|
|
|
| Country of Origin | DE |
| Customs Number | 84672985 |
| GTIN-13 / EAN | 4031026488271 |
| Minimum Order Quantity | 1 |
| Packaging 1 - Height (m) | 0.145m |
| Packaging 1 - Length (m) | 0.471m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | pcs. |
| Packaging 1 - Volume (m³) | 0.02636m³ |
| Packaging 1 - Weight (kg) | 4.957kg |
| Packaging 1 - Width (m) | 0.386m |
| Packaging 3 - Height (m) | 0.168m |
| Packaging 3 - Length (m) | 0.481m |
| Packaging 3 - Qty | 1 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0396m³ |
| Packaging 3 - Weight (kg) | 6.86kg |
| Packaging 3 - Width (m) | 0.49m |
| Packaging 4 - Height (m) | 1.153m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 10 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.107m³ |
| Packaging 4 - Weight (kg) | 89.6kg |
| Packaging 4 - Width (m) | 0.8m |
