23/02/2025

Accessory, Autotool, grey, 1pc. (Power Pack)
Art.-No. 102-00010 | Power Pack-MET/PL-GY |  Details

    This product is not available anymore.

    Alternative product available

    • Bench mount kit automatic ATS in fully automated production lines
    • Bench mount kit horizontal ATS for horizontal use in fully automated production lines
    • Bench mount kit ATS for stationary use, foot pedal included
    • Overhead suspension ATS for flexible use
    Add to watchlist

    Request your individual offer now

     Request quote
    Application Method Stationary or flexible
    Bench mount kit Tool and tie reel retainer including foot pedal
    Colour Grey (GY)

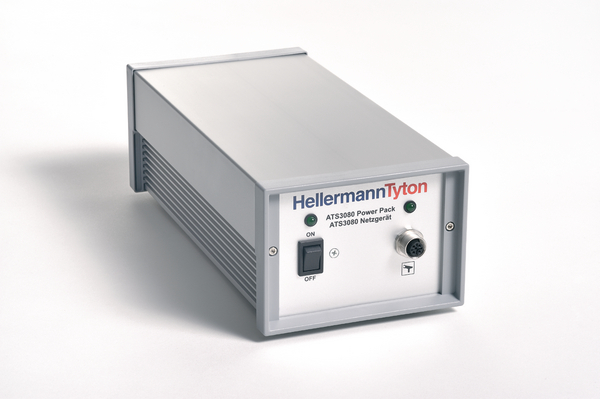

    Description Power Pack ATS
    Harness board accessory HH20 Raises the bundle off the harness board at optimum height and allows the operator to eliminate handling the bundle when applying ties.
    Local order number ATS3080PP.9A
    Material Metal (MET), Plastic (PL)
    Operation electrical
    PART DESCRIPTION Power Pack-MET/PL-GY
    Pack Cont. 1pc.
    Package Content packed in pcs.
    Power Supply unit Input: 240/115 V a.c., 50/60 Hz, Output: 48 V d.c., max. 150 W
    Product Family Power Pack
    Product Group Waste-free bundling up to ⌀ 100 mm
    Short Description Automatic cable tying system power pack
    Tool suitable cable tie material Plastic
    Type Power Pack
    Bundle ⌀ 0.0-80.0mm
    Bundle ⌀ min. 0.0mm
    Bundle Diameter max (metric) 80.0mm
    Height (H) 90mm
    Length (L) 265mm
    Operational Voltage AC230V / AC100V
    Tension Setting Manual
    Weight/Unit 2.0kg
    Width (W) 125mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 85044090
    GTIN-13 / EAN 4031026215839
    Packaging 1 - Height (m) 0.11m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 1
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00396m³
    Packaging 1 - Weight (kg) 2.0kg
    Packaging 1 - Width (m) 0.12m
    ETIM 7.0 Key EC000453
    ETIM 8.0 Key EC000453
    ETIM 9.0 Key EC000453
    UNSPSC Key 27112410
    Cable tie guns Cable tie guns

    Cable tie guns

    From manual and pneumatic cable tie guns to automatic cable tie guns, Hellermanntyton offers a wide range of cable tie tensioning tools for a variety of requirements. Always reliable and comfortable and ideal for long-term use.
