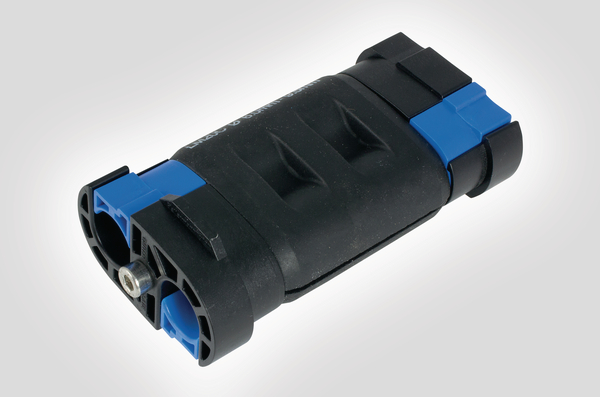

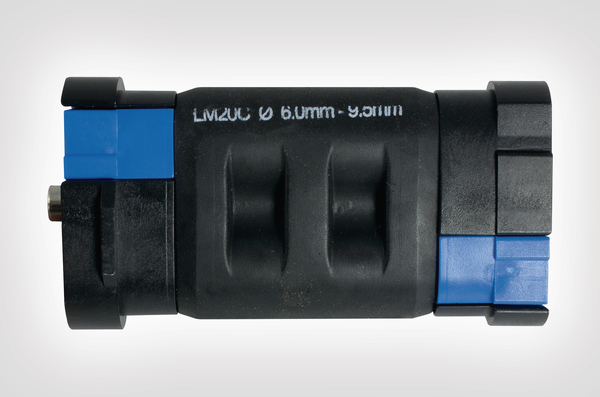

Cablelok LM20C 6.0-9.5mm x10
Art.-No. 857-50206
| CABLELOK-LM20C-10
|
Details
- Cable range coverage from 6.0mm to 9.5mm
- Dual outlet for loop through applications
- Seals to in excess of 6m head of water
- Highly repeatable installation - the quality of the seal is not dependant on the skill of the engineer
- Ideal for use in hazardous areas as no heat or gas is required for installation
- Supplied in multiples of 10
- Supplied with installation lubricant sachets
Request your individual offer now
Request quote
More products in this product group:
| Cable ∅ max | 9.5mm |
| Cable ∅ min | 6.0mm |
| Colour | Black (BK) |
| Content | 10 X CABLELOK-LM20C, 1 x Allen Key, 20 x Lubricating Wipe |
| Description | HellermannTyton’s patented Cablelok mechanical seal enables fast safe cable installation, providing a highly repeatable and consistent seal between the cable and the closure port with excellent non-leak performance. Tested to in excess of 6m head of water, the Cablelok does not rely on the skill and experience of the engineer to achieve the required seal, whilst installation times are typically reduced by up to 90%. |
| Material | Chloroprene rubber (CR) |
| PART DESCRIPTION | CABLELOK-LM20C-10 |
| Pack Cont. | 10pcs. |
| Package Content packed in | Bag |
| Port | LM |
| Port count | 2 |
| Product Family | Cablelok |
| Product Group | LM Port Cablelok |
| Short Description | Cablelok LM20C 6.0-9.5mm x10 |
| Technical Description | The LM20C Port Cablelok is a mechanical seal manufactured from Neoprene rubber, Minlon and Acetal and designed to be used with the range of HellermannTyton dome closures. The LM20C cablelok provides a seal for cables within a cable range of 6.0 - 9.5mm. |
| Type | CABLELOK-LM20C-10 |
| Variant | Oval - LM |
