Cablelok S10 5.0-8.5mm x10
Art.-No. 857-50180 | CABLELOK-S10-10 Details

  • Cable range coverage from 5.0mm to 8.5mm
  • Seals to in excess of 6m head of water
  • Highly repeatable installation - the quality of the seal is not dependant on the skill of the engineer
  • Ideal for use in hazardous areas as no heat or gas is required for installation
Show more

Request your individual offer now

Cable ∅ max 8.5mm
Cable ∅ min 5.0mm
Colour Black (BK)
Content 10 x CABLELOK-S10(S6), 20 x Lubricating Wipes
Description HellermannTyton’s patented Cablelok mechanical seal enables fast safe cable installation, providing a highly repeatable and consistent seal between the cable and the closure port with excellent non-leak performance. Tested to in excess of 6m head of water, the Cablelok does not rely on the skill and experience of the engineer to achieve the required seal, whilst installation times are typically reduced by up to 90%.
Material Chloroprene rubber (CR)
PART DESCRIPTION CABLELOK-S10-10
Pack Cont. 10pcs.
Package Content packed in Bag
Port S
Port count 1
Product Family Cablelok
Product Group S Port Cablelok
Short Description Cablelok S10 5.0-8.5mm x10

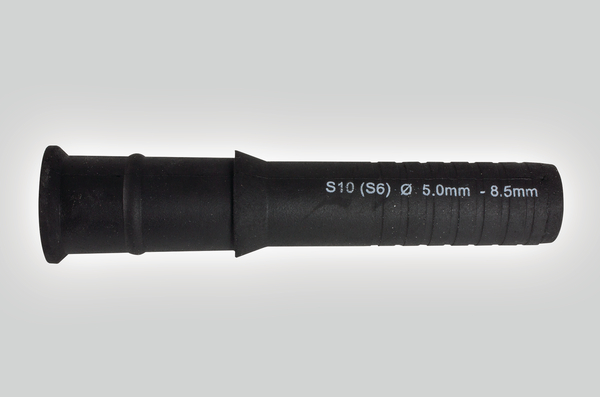

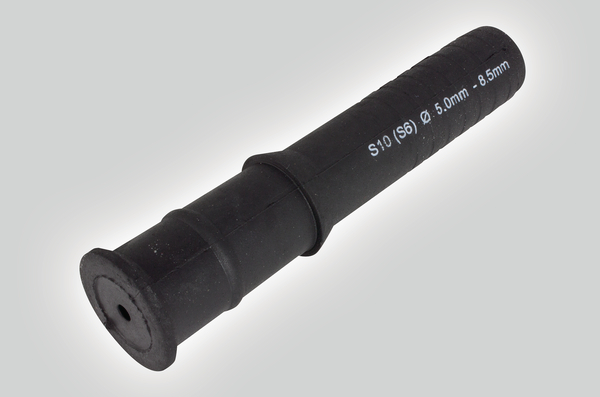

Technical Description The S10 Port Cablelok is a mechanical seal manufactured from external grade flexible polychloroprene designed to be used with the range of HellermannTyton dome closures. The S10 cablelok provides a seal for cables within a cable range of 5.0mm – 8.5mm.
Type CABLELOK-S10-10
Variant Round - S
Country of Origin GB
Customs Number 40093200
GTIN-13 / EAN 5022660102325
Packaging 1 - Height (m) 0.381m
Packaging 1 - Length (m) 0.254m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0
Packaging 1 - Weight (kg) 0.2kg
ETIM 7.0 Key EC000000
ETIM 8.0 Key EC000879
ETIM 9.0 Key EC000879
UNSPSC Key 43202218
