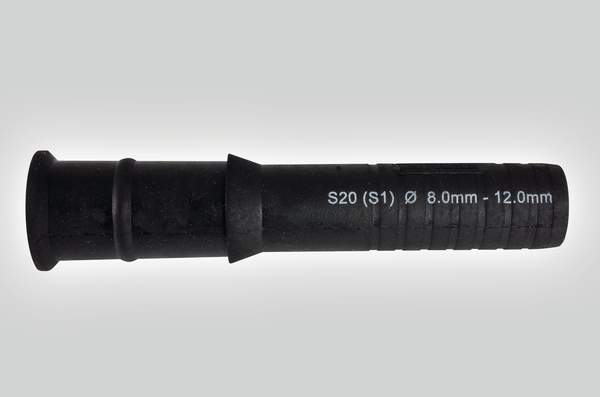

Cablelok S20 8.0-12.0mm x10
Art.-No. 857-50170
| CABLELOK-S20-10
|
Details
- Cable range coverage from 5.0mm to 20.0mm
- Multi-hole version available to allow 2 cable drops from the same port
- Multi-hole cable range coverage from 10.0mm – 11.5mm (S30D)
- Port closure plug available
- Supplied in multiples of 1 and 10
- Supplied with installation lubricant sachets
Request your individual offer now
Request quote
More products in this product group:
| Cable ∅ max | 12.0mm |
| Cable ∅ min | 8.0mm |
| Colour | Black (BK) |
| Content | 10 x CABLELOK-S20(S1), 10 x Lubricating Wipes |
| Description | HellermannTyton’s patented Cablelok mechanical seal enables fast safe cable installation, providing a highly repeatable and consistent seal between the cable and the closure port with excellent non-leak performance. Tested to in excess of 6m head of water, the Cablelok does not rely on the skill and experience of the engineer to achieve the required seal, whilst installation times are typically reduced by up to 90%. |
| Material | Chloroprene rubber (CR) |
| PART DESCRIPTION | CABLELOK-S20-10 |
| Pack Cont. | 10pcs. |
| Package Content packed in | Bag |
| Port | S |
| Port count | 1 |
| Product Family | Cablelok |
| Product Group | S Port Cablelok |
| Short Description | Cablelok S20 8.0-12.0mm x10 |
| Technical Description | The S Port Cablelok is a mechanical seal manufactured from external grade flexible polychloroprene. There are 6 Cablelok's which cover a cable range of 5.0mm – 20.0mm including one multi-hole version to allow two cable drops from the same port and a port plug for blocking unused S sized drop ports. |
| Type | CABLELOK-S20-10 |
| Variant | Round - S |
