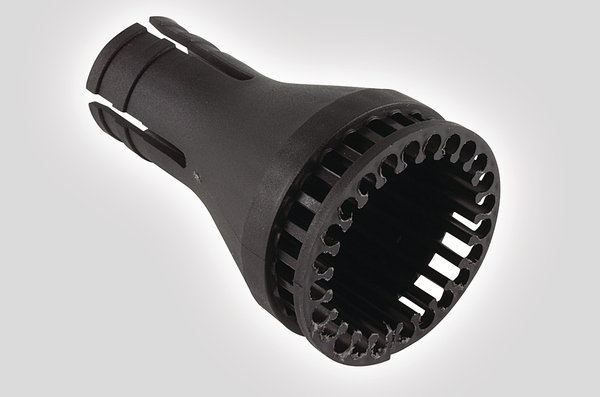

FM3622 24 Way Fibre Adaptor
Art.-No. 857-40103 | FM3622 Details

  • 3 Adaptor options available
  • Quick and easy to use
  • Maximum number of outlets 24
  • Maximum cable diameter 18mm
  • Internal location points for spiral binding and strength members
  • Moulded recess on outside to grip cable ties to secure cable
Show more

Request your individual offer now

Content Adapter
Markers
Transportation Tubing
Poly Spiral Tubing
Cable Ties
Description Fibre Adaptors
Local order number FM3622
PART DESCRIPTION FM3622
Package Content packed in Bag
Product Family Closure Base Accessories
Product Group 24 Way Fibre Adaptor
Short Description FM3622 24 Way Fibre Adaptor
Technical Description The HellermannTyton range of adaptors offer a simple solution for dividing and managing fibres within a splice closure whilst fitted directly over the cable sheath. The adaptors are manufactured from ABS and the 6 and 12 outlet adaptors can be fitted over a cable sheath with a maximum diameter of 15mm and minimum of 5mm. The 24 outlet adaptor can be fitted over a cable sheath with a maximum diameter of 18mm and a minimum of 5mm. Each adaptor is supplied with poly spiral binding and transportation tubing for up to 24 outlets. The 12 and 24 adaptor kits are suitable for use in loop through applications and are supplied with spiral tubing.
Type FM3622
Bore Diameter (metric) 3.0
Weight/Unit 0.36kg
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Country of Origin GB
Customs Number 85176200
GTIN-13 / EAN 5022660484049
Packaging 1 - Height (m) 0.381m
Packaging 1 - Length (m) 0.254m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0
ETIM 7.0 Key EC000752
ETIM 8.0 Key EC000752
ETIM 9.0 Key EC000752
