MDU S5 Loop Through Seal 3mm - 14mm
Art.-No. 857-50233
| LG-S5-3MM-14MM
|
Details
- Cable range coverage from 3.0mm to 14.0mm
- Dual outlet for loop through applications
- Quick and simple to fit
Request your individual offer now
Request quote
More products in this product group:
| Cable ∅ max | 14.0mm |
| Cable ∅ min | 3.0mm |
| Colour | Grey RAL 7035 (RAL7035), Black (BK) |
| Content |
Loop Gland Seal Plates Cable Diameter Spacers Cable Anchor Clamp |
| Description | MDU S5 Loop Through Seal 3mm - 14mm |
| Material | Thermoplastic Elastomer (TPE), Acrylonitrile Butadiene Styrene (ABS) |
| PART DESCRIPTION | LG-S5-3MM-14MM |
| Pack Cont. | 1pc. |
| Package Content packed in | Bag |
| Port count | 2 |
| Product Group | MDU S5 Loop Through Seal |
| Short Description | MDU S5 Loop Through Seal 3mm - 14mm |

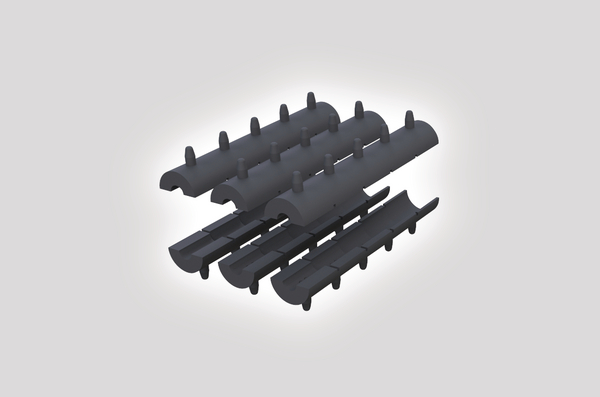

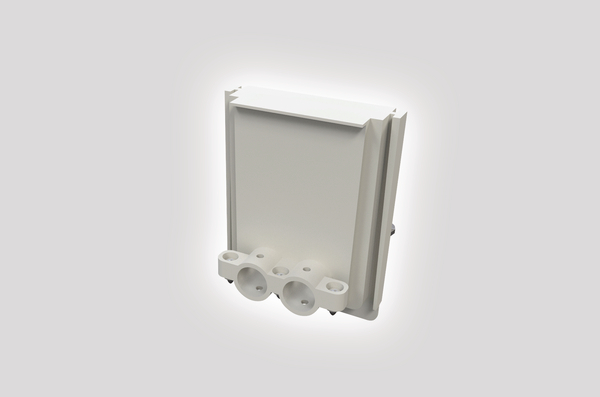

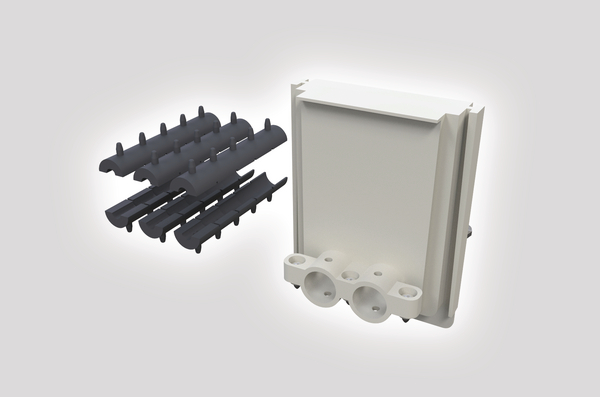

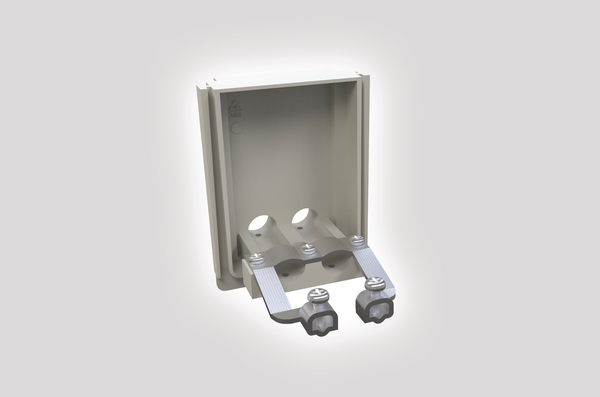

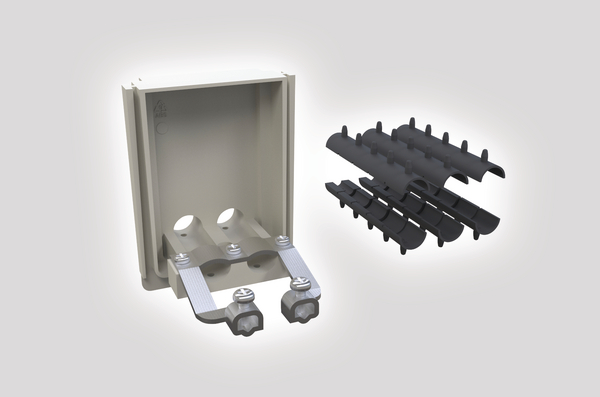

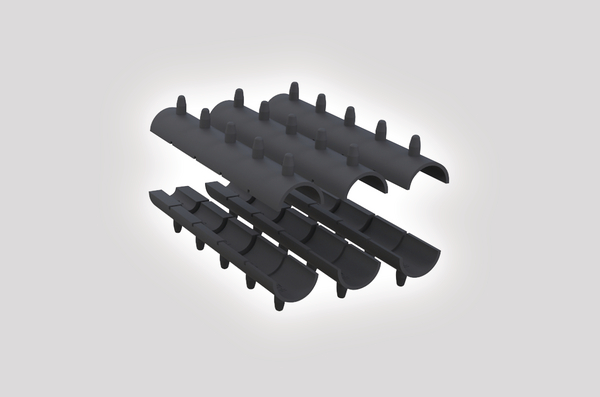

| Technical Description | The LG-S5-3MM-14MM is a mechanical seal manufactured from ABS and TPE. The seal covers a cable range of 3.0mm – 14.0mm and has a dual outlet for loop through applications. Each seal kit is supplied with the seal plates, TPE spacers and a cable anchor clamp. |
| Type | LG-S5-3MM-14MM |
| Variant | Indoor/Outdoor FTTx Enclosures |
