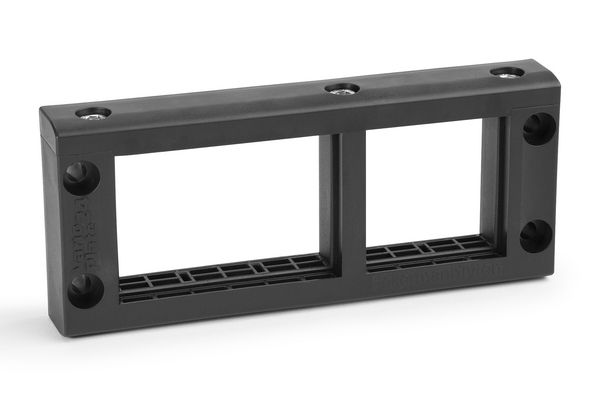

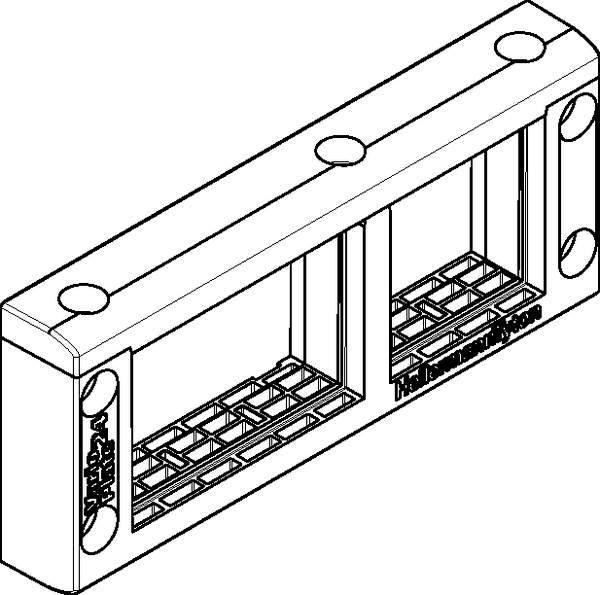

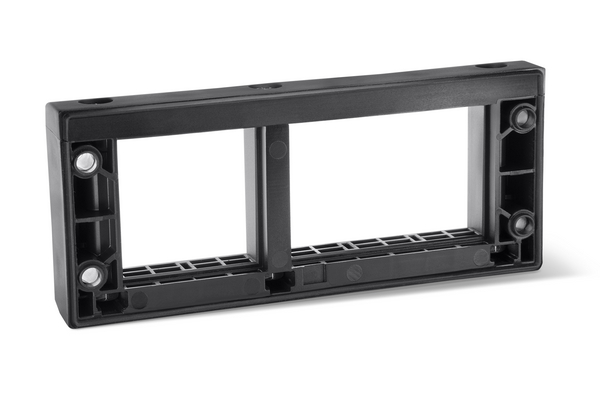

Cable entry system, Frame, 61x143.5x21.00mm, 10 holes, ∅33 - 3mm, black, 10pcs.
Art.-No. 440-00003
| VarioPlate-24_Frame-PA66GF25-BK
|
Details
- Time and space saving design
- Easy assembly, subsequent changes possible
- Wall gasket included in frame design
- Modular application for both insert sizes (S and L)
- Integrated strain relief
- Suitable for all common standard cut-out dimensions and drilling patterns
- Integrated cable diameter tolerance compensation
- For cut-out size 112 x 36 mm
- IP 65 and IP 66
Request your individual offer now
Request quote
More products in this product group:
| Application | The VarioPlate Cable Entry System is used to install multiple cables of different diameters, with or without pre-terminated plugs or connectors, or wherever space is limited. It is available in 4 different frame sizes which correspond to the cut-out dimensions commonly used in panel building and for industrial machinery. Combinable grommets with 1, 2 or 4 holes, are available for cable diameters ranging from 3-16 mm (size S) and 16-33 mm (size L). |
| Cable ∅ max | 3mm |
| Cable ∅ min | 33mm |
| Colour | Black (BK) |
| Description | VarioPlate Frame 24 |
| Material | Polyamide 6.6, glass-fibre reinforced (PA66GF25) |
| PART DESCRIPTION | VarioPlate-24_Frame-PA66GF25-BK |
| Pack Cont. | 10pcs. |
| Package Content packed in | Box |
| Product Family | VarioPlate Frame 24 |
| Product Group | VarioPlate Cable Entry System |
| Short Description | VarioPlate Frame 24 |
| Type | VarioPlate-24_Frame |
| Variant | Both sides open |
Download
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V0 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| IP-Rating | IP66 |
| Operating Temperature | -40 °C to +140 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Shelf Life | Unlimited |
| Specifications |
|
| Specifications | csa-C22.2 No. 94.1, csa-C22.2 No. 94.2, UL 50, UL 50E |
| UL OCD link | Link Link |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E526974 |
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026686172 |
| Packaging 1 - Height (m) | 0.07m |
| Packaging 1 - Length (m) | 0.23m |
| Packaging 1 - Qty | 10 |
| Packaging 1 - Type | Carton |
| Packaging 1 - Volume (m³) | 0.00242m³ |
| Packaging 1 - Weight (kg) | 1.051kg |
| Packaging 1 - Width (m) | 0.15m |
| Packaging 2 - Height (m) | 0.216m |
| Packaging 2 - Length (m) | 0.3048m |
| Packaging 2 - Volume (m³) | 0.0176m³ |
| Packaging 2 - Width (m) | 0.267m |
| Packaging 3 - Height (m) | 0.3m |
| Packaging 3 - Length (m) | 0.4m |
| Packaging 3 - Qty | 120 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 13.112kg |
| Packaging 3 - Width (m) | 0.4m |
| Packaging 4 - Height (m) | 1.044m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 2160 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.002m³ |
| Packaging 4 - Weight (kg) | 257.016kg |
| Packaging 4 - Width (m) | 0.8m |
