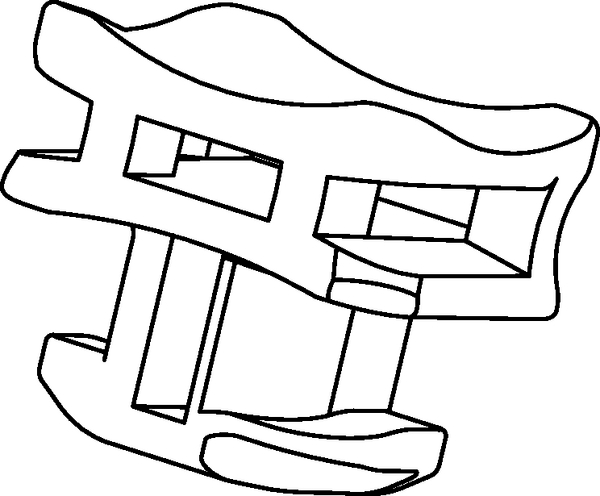

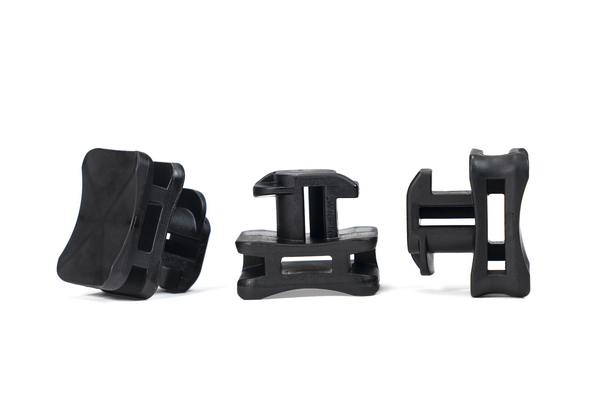

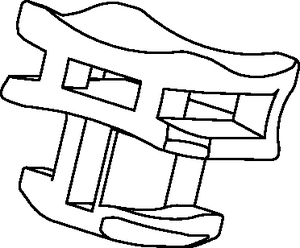

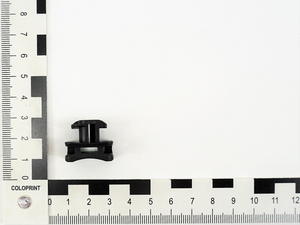

Aluminium frame mount for Bosch Rexroth/SUS, W=10.0mm, T=6.0mm, black, 500pcs.
Art.-No. 151-02858
| ACFM2W10PT6-PA66/6HIRHS-BK
|
Details
- Easy to assemble (quarter turn) without the need for a tool
- Tight fit after assembly
- Fixing with 24er plug nut possible
- Cable fastening longitudinally and transversely to the profile possible
- Centering of the bundled cables due to the deepened shape of the surface
More products in this product group:

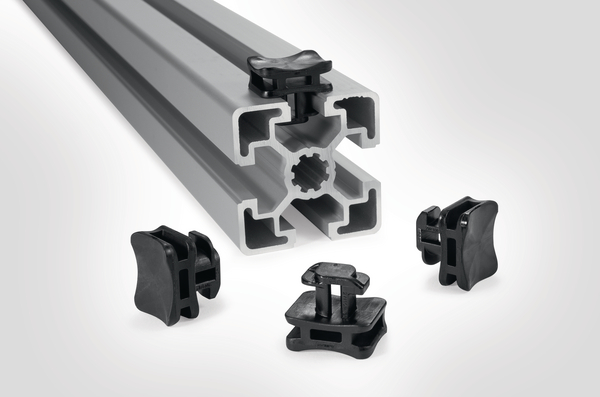

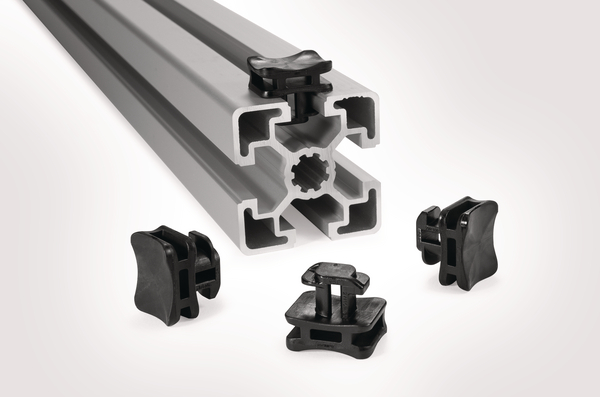

| Application | The ACFM2W10PT6 is specially designed for the Bosch Rexroth profile with a T-slot width of 10 mm and external dimensions of 45 mm. The fact that no mounting hole is necessary, the installation and handling of the ACFM is very simple. The Aluminium frame mount is firmly fixed at the favoured place with a quarter turn and then fits firmly. Can be easily loosened and repositioned at any time. |
| Colour | Black (BK) |
| Fixation Method | Profile rail |
| For Ties | T50 T80 T120 X80 X120 Q50 Q120 |
| Local order number | ACFM2W10PT6_PA66+PA6HIRHS_BK |
| Material | Polyamide 6.6/6, high impact modified, heat stabilised (PA66/6HIRHS) |
| PART DESCRIPTION | ACFM2W10PT6-PA66/6HIRHS-BK |

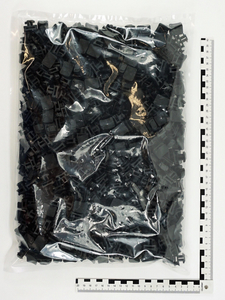

| Pack Cont. | 500pcs. |
| Package Content packed in | Bag |
| Product Family | For Bosch Rexroth Strut profiles slot 10 |
| Product Group | Fixing elements for T-slotted aluminium frames |
| Short Description | Fixing element for aluminium frames, for Bosch Rexroth profile, T-slot width of 10 mm and external dimensions of 45 mm |
| Type | ACFM2W10PT6 |
Download
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026620299 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.3m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.01845m³ |
| Packaging 1 - Weight (kg) | 1.466815kg |
| Packaging 1 - Width (m) | 0.41m |
| Packaging 3 - Height (m) | 0.184m |
| Packaging 3 - Length (m) | 0.58m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0406m³ |
| Packaging 3 - Weight (kg) | 9.40089kg |
| Packaging 3 - Width (m) | 0.38m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 72000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 246.648kg |
| Packaging 4 - Width (m) | 0.8m |
