Scroll down for alternative automation-ready products.

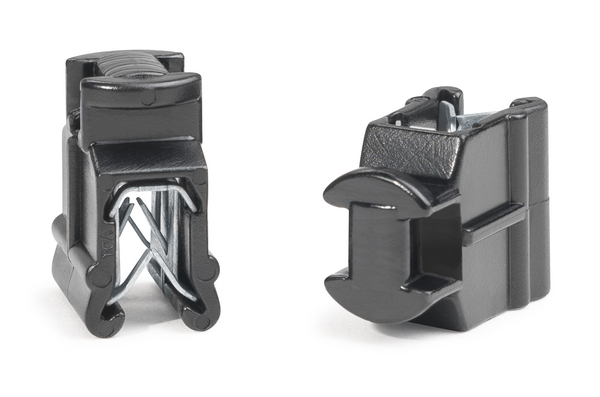

Cable tie mount, black, 10000pcs.
Art.-No. 102-68360 | ATSEC36-PA66HIRHS-BK |  Details

    • Optimized for use automatic cable tying systems
    • Easy to apply
    • The fixing elements can be tied automatically with Autotool System ATS
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download Datasheet
    Application Clips to fix cables and harnesses in the automotive and white goods industry.
    Colour Black (BK)
    Fixation Method Edge Clip
    Internet Customer Notice Scroll down for alternative automation-ready products.
    Key product features products for automatic tools
    Local order number ATSEC36
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION ATSEC36-PA66HIRHS-BK
    Pack Cont. 10000pcs.
    Package Content packed in pcs.
    Product Family EdgeClip-Series for automatic cable tying systems
    Product Group Automatic bundling
    Short Description Footparts for Autotool System
    Type ATSEC36
    Bundle ∅ 0.0mm
    Bundle ∅ min. 0.0mm
    Height (H) 18.99mm
    Length (L) 15.00mm
    Weight/Unit 0.001806kg
    Width (W) 10.1mm
    for Panel Thickness min - max 1.5 - 4 mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026259178
    Minimum Order Quantity 5000
    Packaging 1 - Qty 10000
    Packaging 1 - Type Bag
    Packaging 1 - Weight (kg) 18.126663kg
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 10000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 18.776663kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 200000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 396.54kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
    Cable tie guns Cable tie guns

    Cable tie guns

    From manual and pneumatic cable tie guns to automatic cable tie guns, Hellermanntyton offers a wide range of cable tie tensioning tools for a variety of requirements. Always reliable and comfortable and ideal for long-term use.
