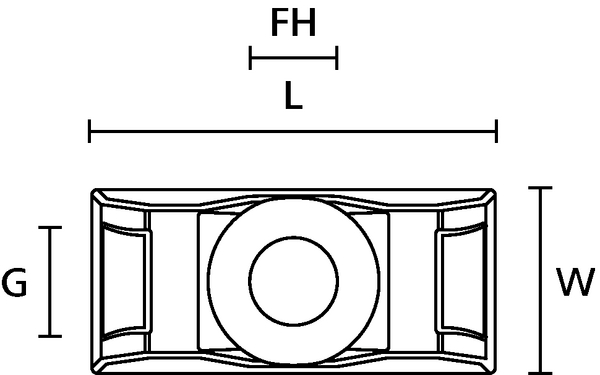

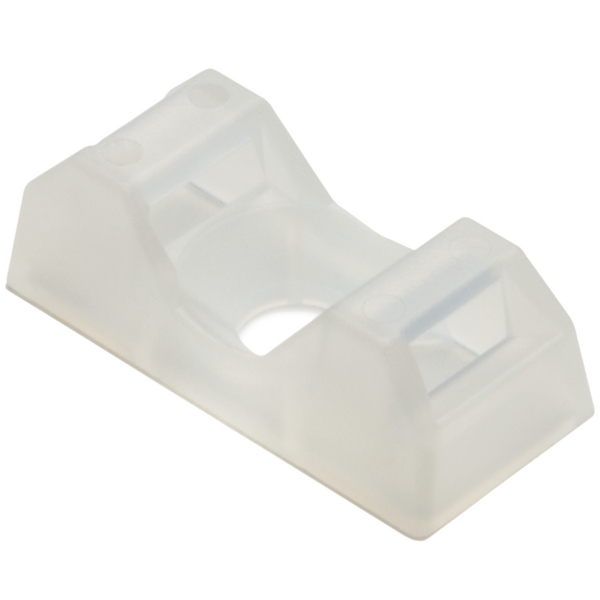

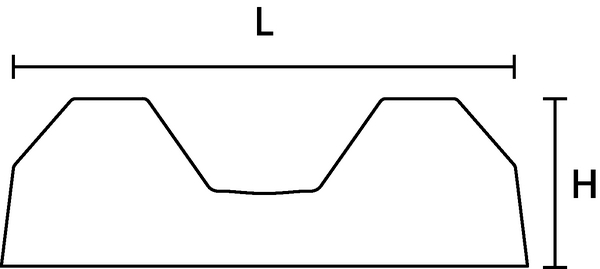

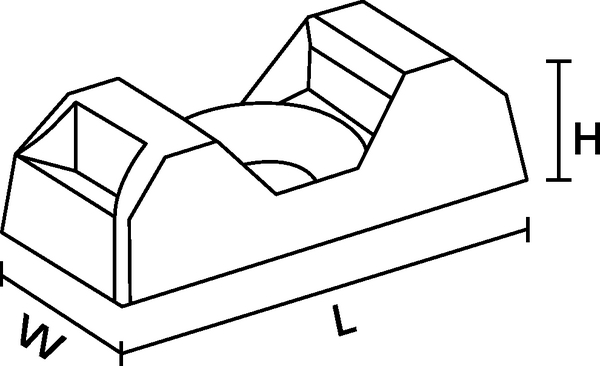

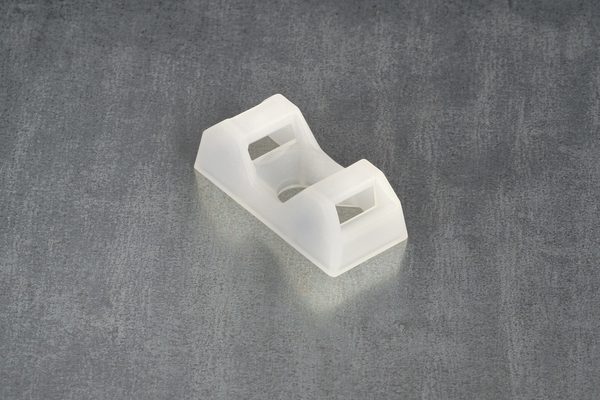

Cable tie mount for screw fixation, Wmax=5.0mm, ∅4.5 mm, M4 Screw, natural, 100pcs.
Art.-No. 151-10920
| CTQM5-PA66-NA
|
Details
- 2-way mounting base for safe guiding of cables and conduits
- For cable ties up to 5 mm width
- Uses screw with countersunk head (max. ø of head: 8.0 mm)
- Perfect for combination with Q-ties
- Pre-assembly feature in combination with cable tie
- Holds the cable tie in vertical mounting position
Request your individual offer now
Request quote
More products in this product group:
| Application | CTQM mounts are ideally suited for holding our innovative Q-ties in place. They would perfectly fit to all applications where a reliable and durable fixation is required and where space is limited. |
| Colour | Natural (NA) |
| Fixation Method | Screw Mount |
| For Ties | Q-Ties |
| Local order number | CTQM5-PA66-NA-C1 |
| Material | Polyamide 6.6 (PA66) |
| Mounting Screw Type | M4 Screw |
| PART DESCRIPTION | CTQM5-PA66-NA |
| Pack Cont. | 100pcs. |
| Package Content packed in | Bag |
| Product Family | Q-mount Series CTQM |
| Product Group | Screw fixing cable tie mounts CTQM for limited space |
| Short Description | Screwable Fixing Mount 21x9.5 natural |
| Type | CTQM5 |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B |
| UL OCD link | Link |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E65344 |
| UV-Stabilised | No |
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026413815 |
| Packaging 1 - Height (m) | 0.015m |
| Packaging 1 - Length (m) | 0.28m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0005m³ |
| Packaging 1 - Weight (kg) | 0.04941kg |
| Packaging 1 - Width (m) | 0.12m |
| Packaging 3 - Height (m) | 0.171m |
| Packaging 3 - Length (m) | 0.56m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0172m³ |
| Packaging 3 - Weight (kg) | 1.7203kg |
| Packaging 3 - Width (m) | 0.18m |
| Packaging 4 - Height (m) | 1.17m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 144000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.123m³ |
| Packaging 4 - Weight (kg) | 104.28kg |
| Packaging 4 - Width (m) | 0.8m |
