Cable tie mount for screw fixation, black, 2000pcs.
Art.-No. 150-61910 | KM6-PA66-BK |  Details

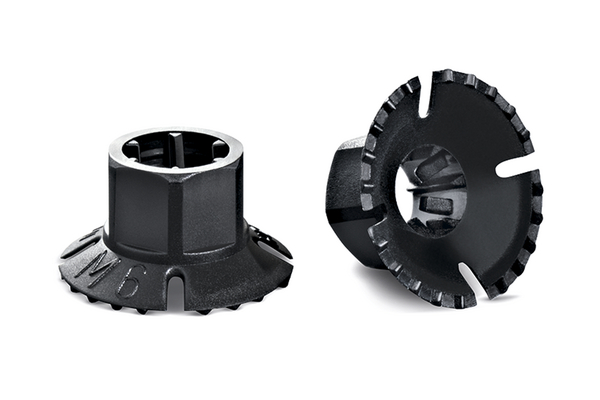

Plastic Nuts KM5 and KM6.

    This product is not available anymore.
    • Faster assembly than traditional metal hexagonal nuts
    • Simply pushed onto bolt by hand
    • Easily opened at any time using a standard spanner
    • Available for both 5 mm and 6 mm ISO threaded bolts
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download

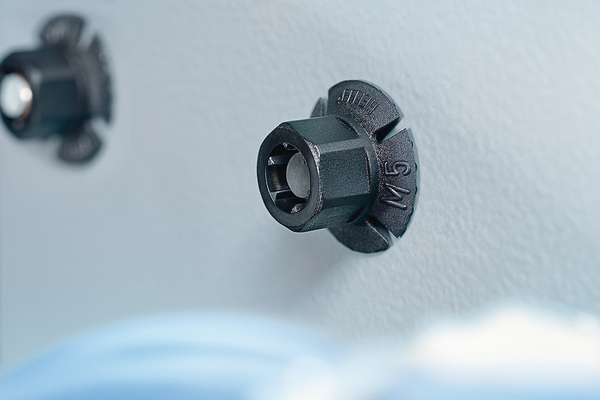

    Application KM plastic nuts can be used in virtually all applications where metal nuts may have been used. Offering benefits in speed of application, weight saving and corrosion resistance they also offer a secure fixing when subject to vibration. Typical applications can be found in a wide variety of industries from automotive to white goods (domestic appliances).
    Colour Black (BK)
    Fixation Method with Weld Stud (Mounts)
    Local order number KM6
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION KM6-PA66-BK
    Pack Cont. 2000pcs.
    Package Content packed in Bag
    Product Family KM
    Product Group Plastic nuts
    Short Description Plastic Nut 17,5x9,6 mm black
    Type KM6

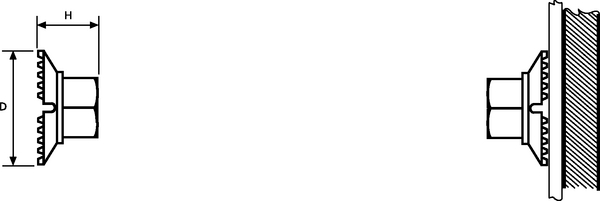

    Diameter (D) 17.5mm
    Height (H) 9.6mm

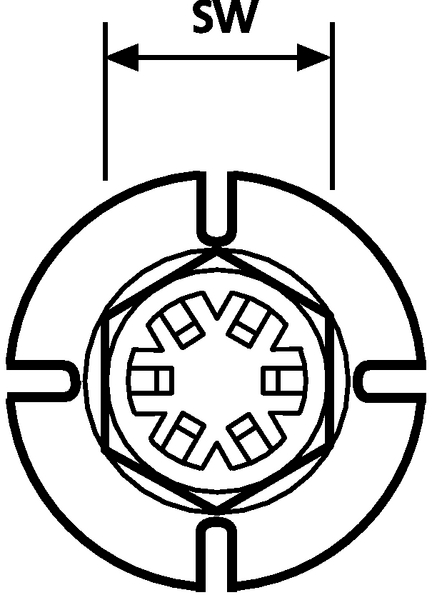

    Nut Size (NS) 10.0mm
    Weight/Unit 0.00042kg
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026121574
    Packaging 1 - Height (m) 0.3m
    Packaging 1 - Length (m) 0.625m
    Packaging 1 - Qty 2000
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.0825m³
    Packaging 1 - Weight (kg) 0.893478kg
    Packaging 1 - Width (m) 0.44m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
