23/12/2024

Cable tie mount for screw fixation, Wmax=7.6mm, ∅6.0 mm, black, 500pcs.
Art.-No. 151-26302 | LKM-PA66-BK |  Details

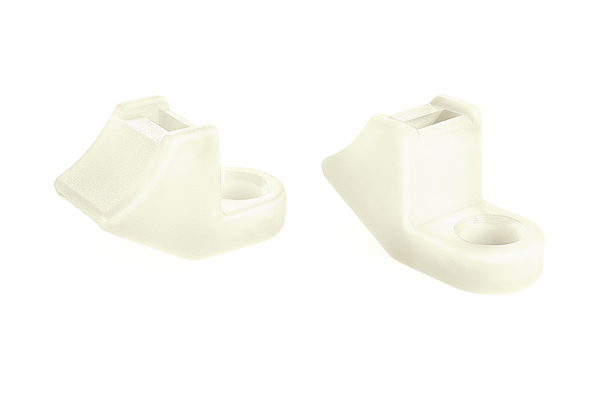

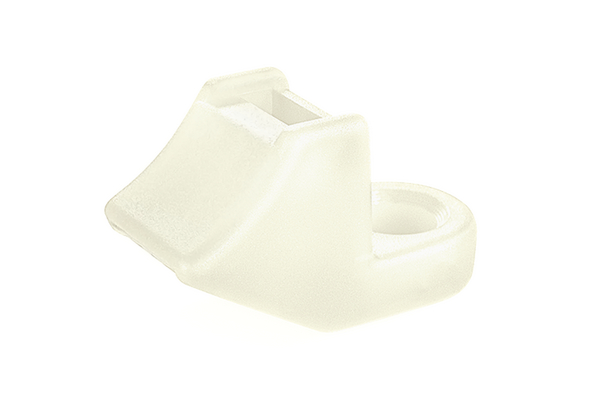

LKM / CL8 Cable Tie Mounts with curved design.

    • Small overall size for areas with limited mounting space

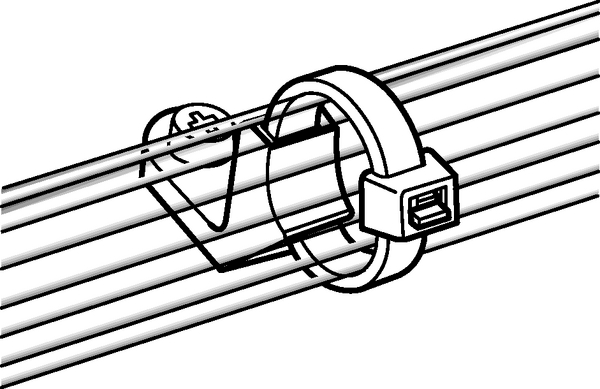

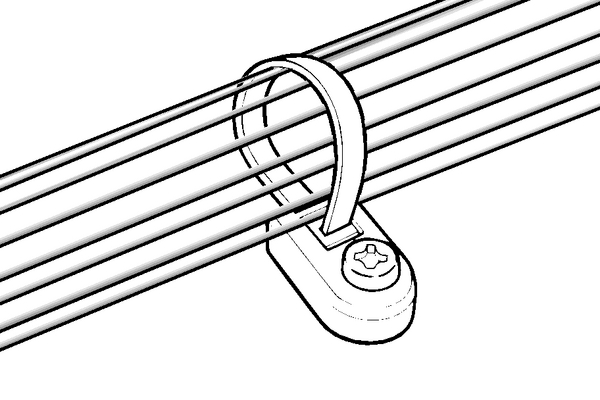

    • Screwable mounts for fixing cable sideways
    • Ideal for securing large, heavier bundles
    • Suitable for cable ties up to 8 mm width
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet

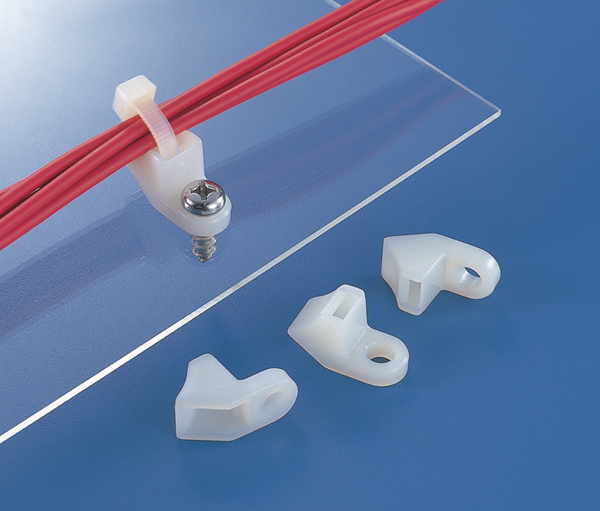

    Application In areas with limited space these mounting bases allow the cable to be offset from the fixing hole, and can be installed in the equipment prior to the cable installation. A major cost saving can be made using these products as they will allow the use of many different sizes of standard cable ties without the need to stock a wide range of specific fixing ties.
    Colour Black (BK)
    Fixation Method Screw Mounting and Rivet
    Local order number LKM.NB6P
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION LKM-PA66-BK
    Pack Cont. 500pcs.
    Package Content packed in Bag
    Product Family LKM / CL / FH with curved design for sideways fixing
    Product Group Screw fixing mounts
    Type LKM

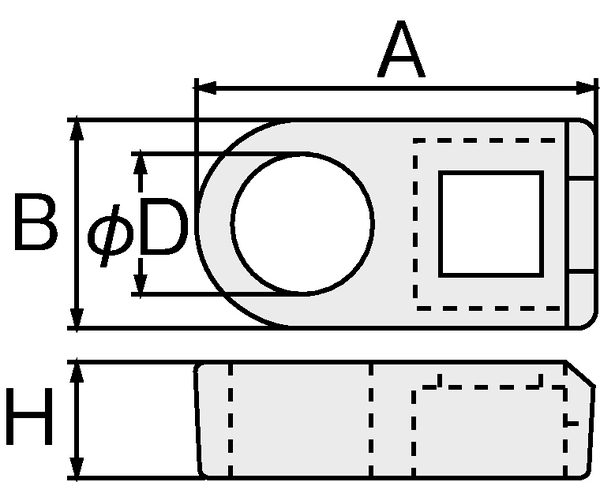

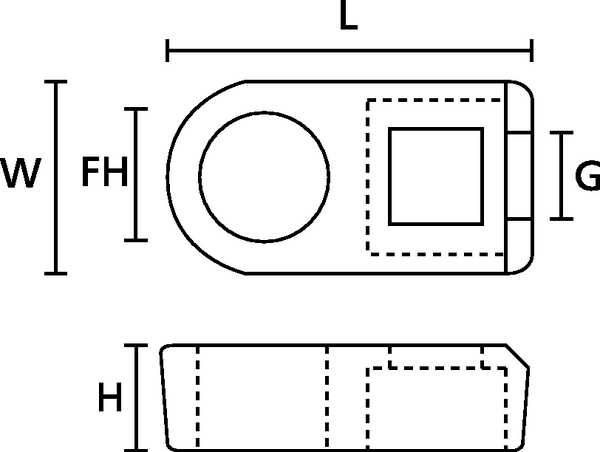

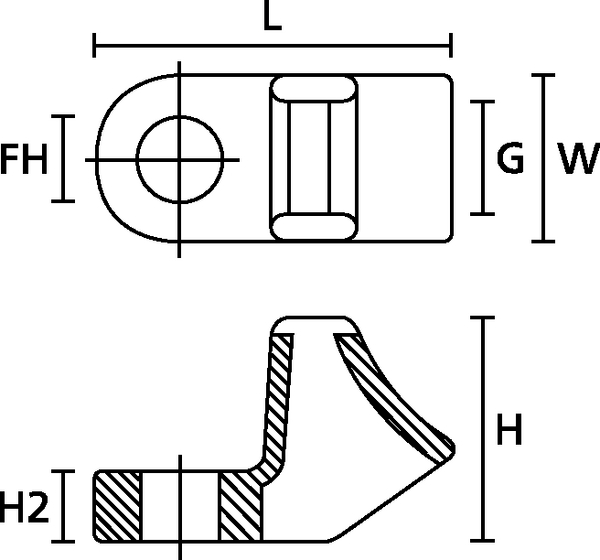

    Height (H) 16.0mm
    Height (H2) 5.0mm
    Length (L) 27.0mm
    Strap Width max. (G) 7.6mm
    Width (W) 12.0mm
    for Hole ∅ (FH) 6.0 mm
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660310751
    Packaging 3 - Height (m) 0.192m
    Packaging 3 - Length (m) 0.586m
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0439m³
    Packaging 3 - Width (m) 0.39m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
