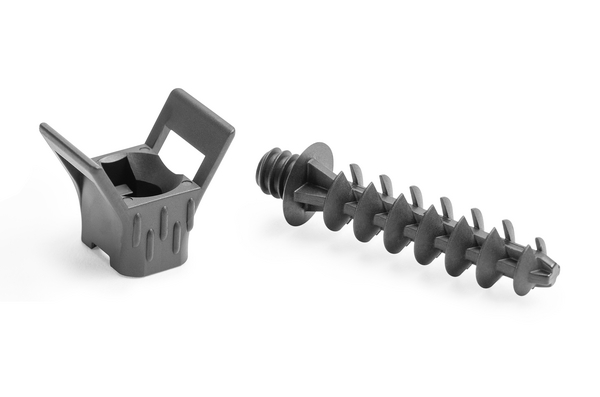

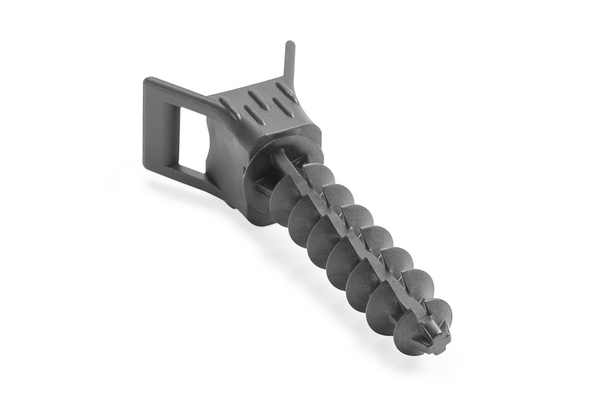

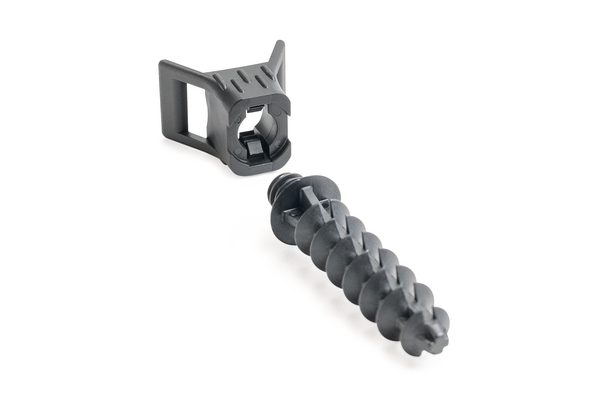

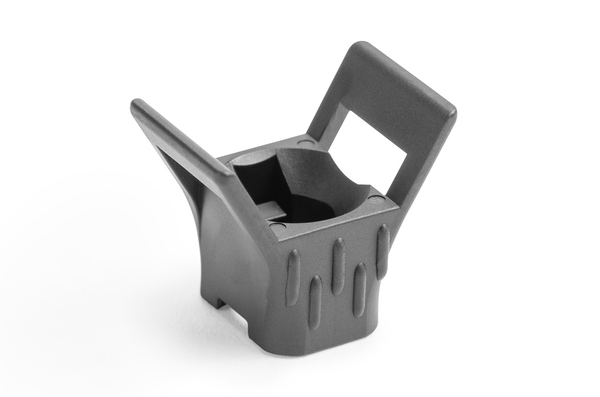

Cable tie mount for screw fixation, Wmax=9.0mm, ∅5.1 mm, black, 100pcs.
Art.-No. 151-80210 | LOK02-PA6HIR-BK |  Details

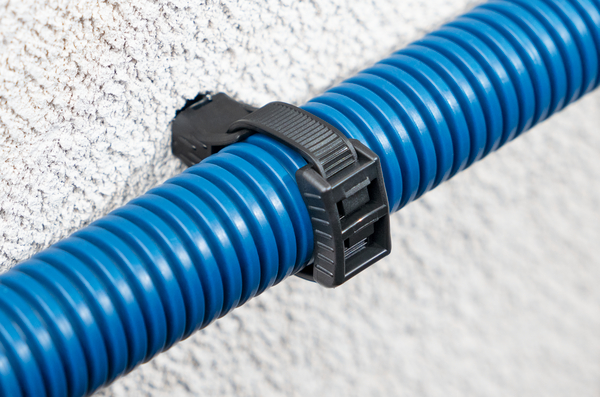

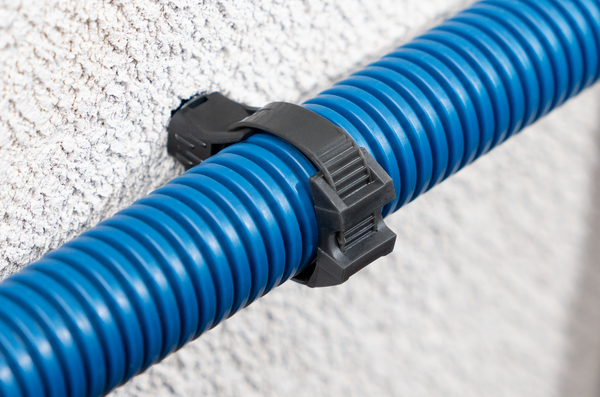

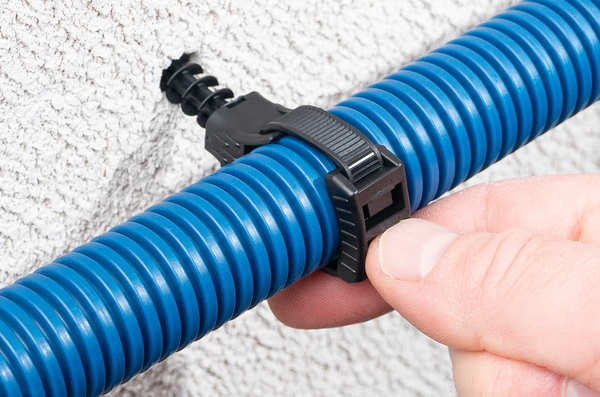

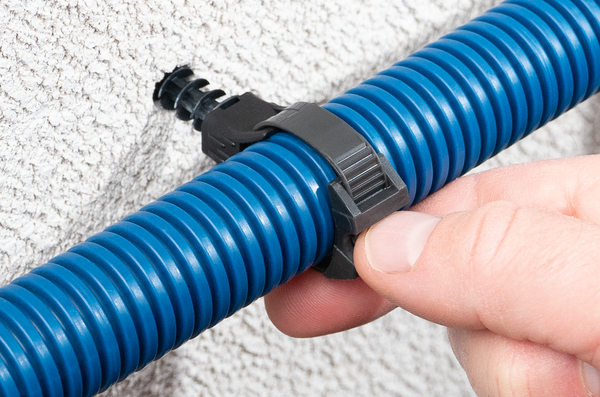

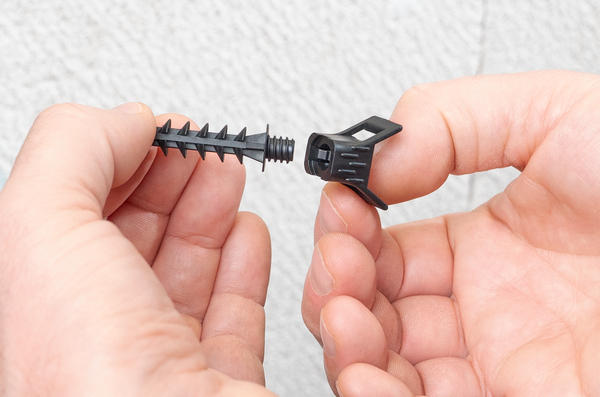

LOK02 fixing base application.

    • Special design of fixing base gives additional support to cables

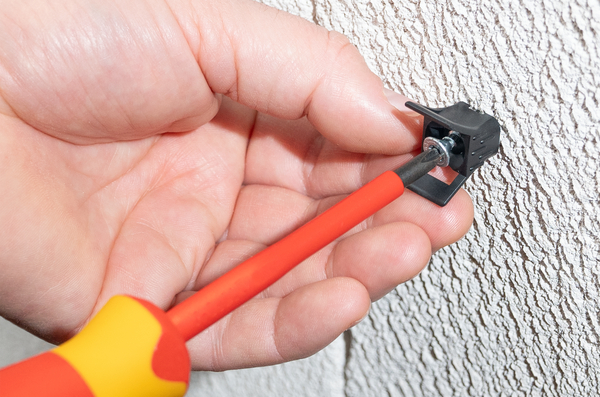

    • Simple to install with a screw or bolt
    • Excellent security, particularly in areas of high vibration
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application Designed specifically for holding heavier cable bundles, these mounting bases can be used in many industries from agriculture to truck manufacturing. LOK cable tie mounts offer a very secure fixing and can be used in combination with cable ties up to 9 mm width.
    Colour Black (BK)
    Fixation Method Screw Mounting and Rivet
    Local order number LOK02.NB3P
    Material Polyamide 6, high impact modified (PA6HIR)
    PART DESCRIPTION LOK02-PA6HIR-BK
    Pack Cont. 100pcs.
    Package Content packed in Bag
    Product Family LOK02
    Product Group Fixing Base
    Short Description Wall-Plug black
    Type LOK02

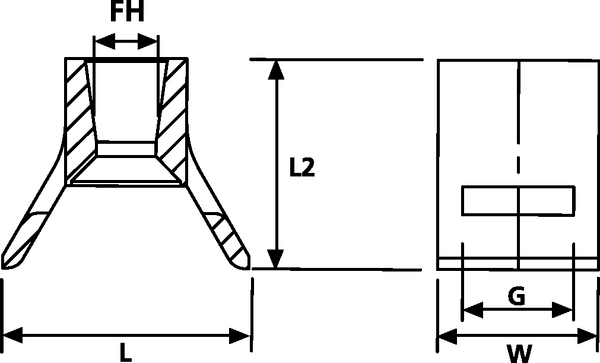

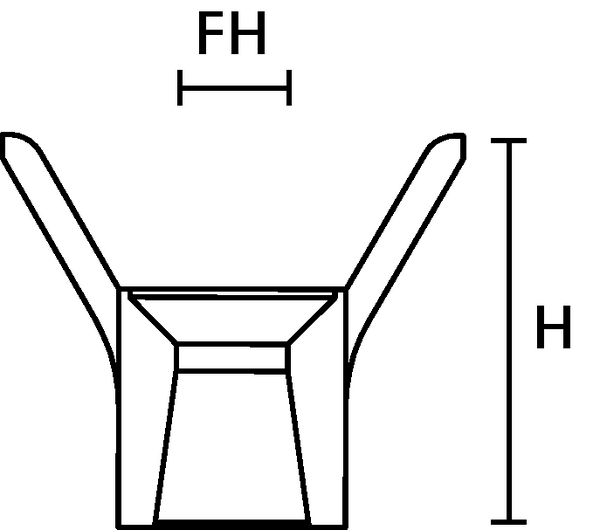

    Height (H) 18.0mm
    Height (H2) 7.0mm

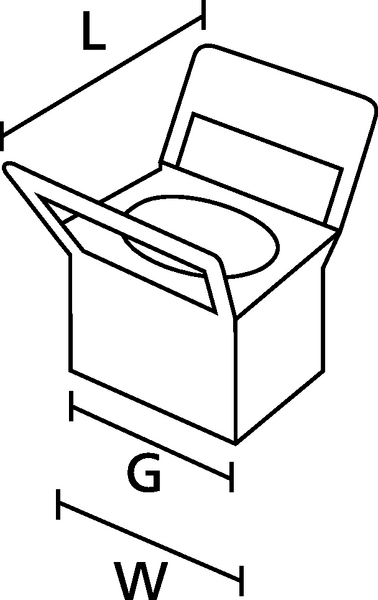

    Length (L) 21.0mm
    Length (L2) 18.0mm
    Strap Width max. (G) 9.0mm
    Weight/Unit 0.002kg
    Width (W) 14.0mm
    Width (W2) 9.5mm
    for Hole ∅ (FH) 5.1 mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +80 °C
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 5022660019524
    Packaging 1 - Height (m) 0.06m
    Packaging 1 - Length (m) 0.15m
    Packaging 1 - Qty 100
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00297m³
    Packaging 1 - Weight (kg) 0.200001kg
    Packaging 1 - Width (m) 0.33m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
