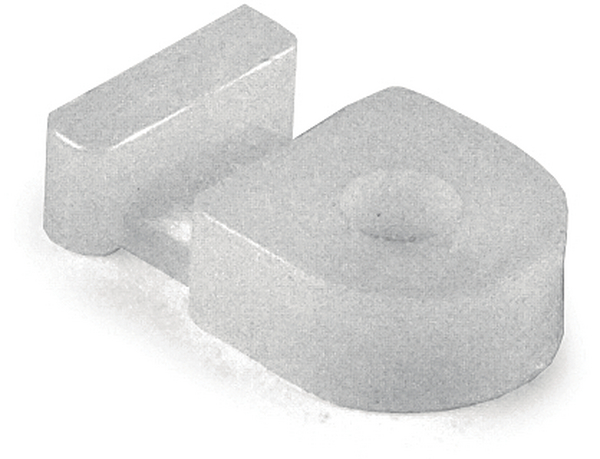

Cable tie mount for screw fixation, Wmax=5.0mm, ∅5.0 mm, M4 Screw, natural, 100pcs.
Art.-No. 151-00858 | MB2-PA66-NA |  Details

Screw fix cable tie mounts MB1.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet

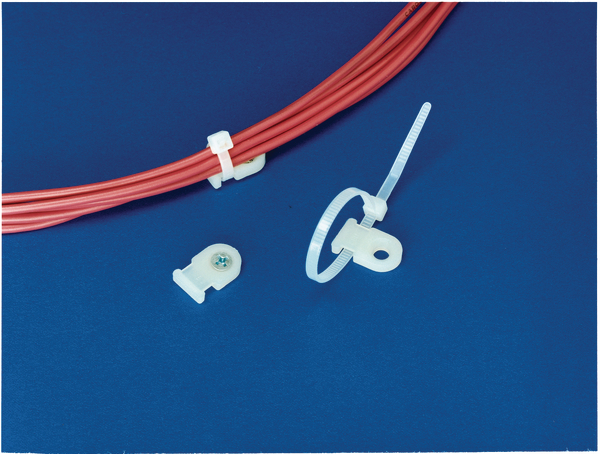

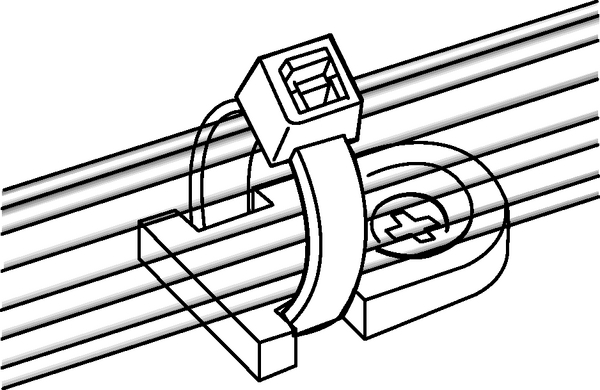

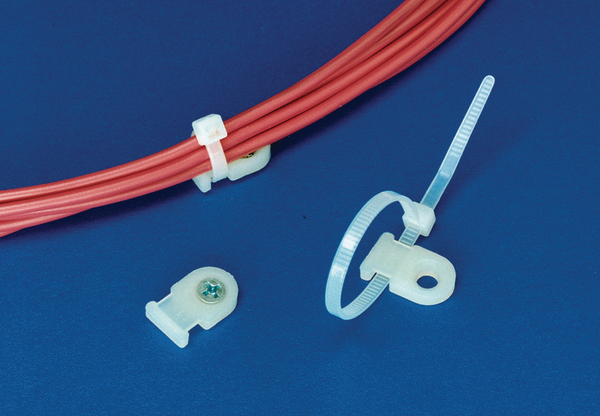

    Application These cable tie mounts are very small in their overall size. They are designed for simple yet robust installation particulary in areas with high vibrations and/or limited space. They are a common fixing method for telecoms equipment, switchgear and control cabinets.
    Colour Natural (NA)
    Fixation Method Screw Mounting and Rivet
    For Ties T18 - T50
    Local order number MB2 NATURAL FIXADOR
    Material Polyamide 6.6 (PA66)
    Mounting Screw Type M4 Screw
    PART DESCRIPTION MB2-PA66-NA
    Pack Cont. 100pcs.
    Package Content packed in Bag
    Product Family MB with flat design
    Product Group Screw Fixing Mounts
    Type MB2

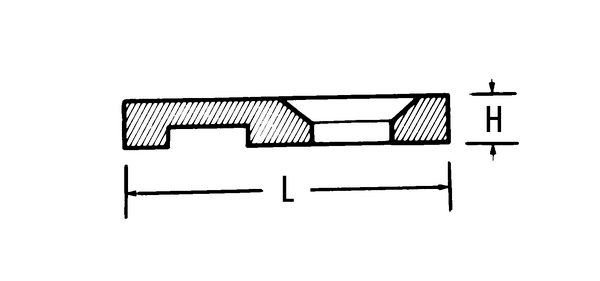

    Height (H) 3.3mm
    Height (H2) 1.7mm

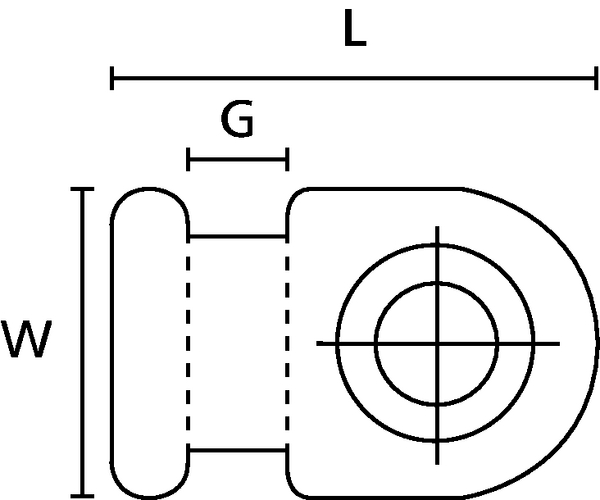

    Length (L) 20.5mm
    Strap Width max. (G) 5.0mm

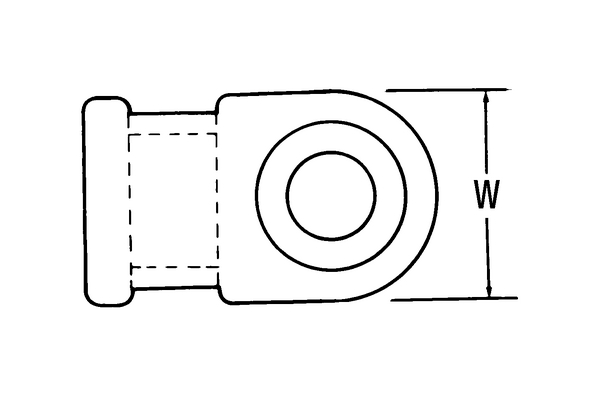

    Width (W) 12.5mm
    for Hole ∅ (FH) 5.0 mm
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin BR
    GTIN-13 / EAN 7890176002068
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
