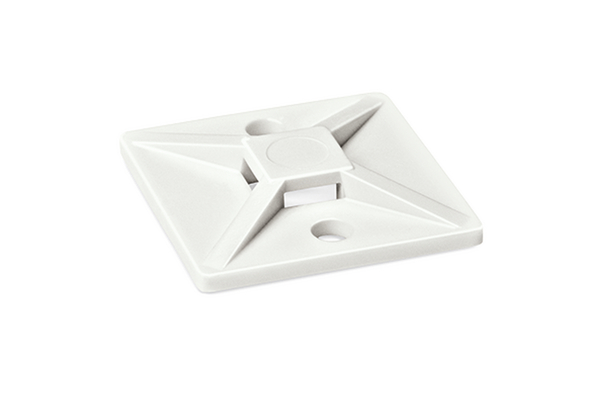

Cable tie mount for screw fixation, Wmax=2.7mm, natural, 500pcs.
Art.-No. 151-01808 | MB2AM-PA66-NA |  Details

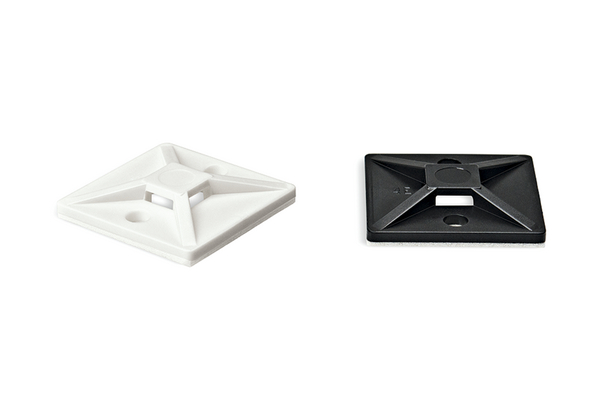

MB-Series Mounts with square design / self-adhesive, screwable.

    • Screwable or self-adhesive versions
    • Simple to install with a screw or bolt
    • Excellent security, particularly in areas of high vibration
    • Maximum surface area with adhesive to achieve high pull-off force
    • 4-way entry for cable tie for quicker and more flexible installation
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet

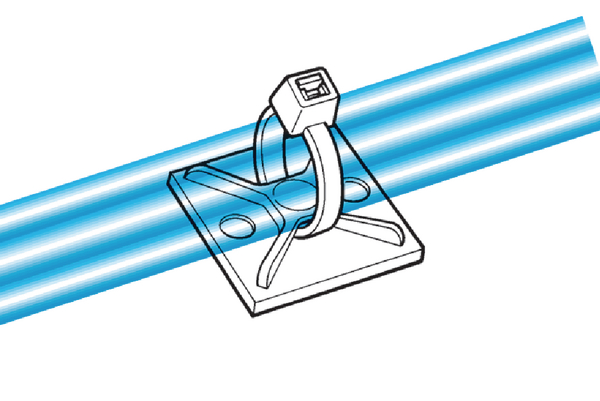

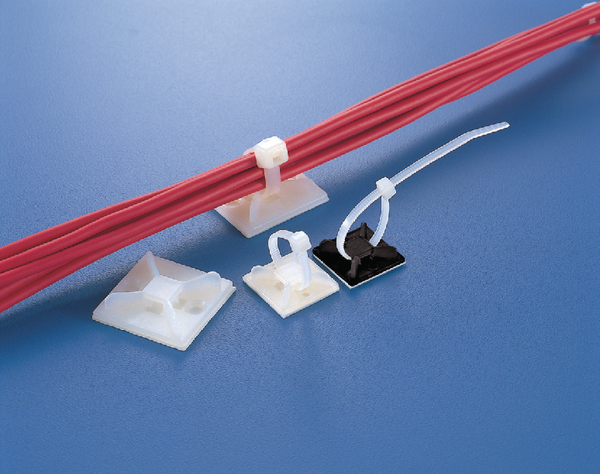

    Application Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from Agriculture to Truck manufacture, they offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 9mm wide.
    Colour Natural (NA)
    Fixation Method Screw Mounting and Rivet
    Local order number MB2AM.NN6E
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION MB2AM-PA66-NA
    Pack Cont. 500pcs.
    Package Content packed in Bag
    Product Family MB-Series square design, screwable
    Product Group Screw fixing cable tie mounts
    Type MB2AM

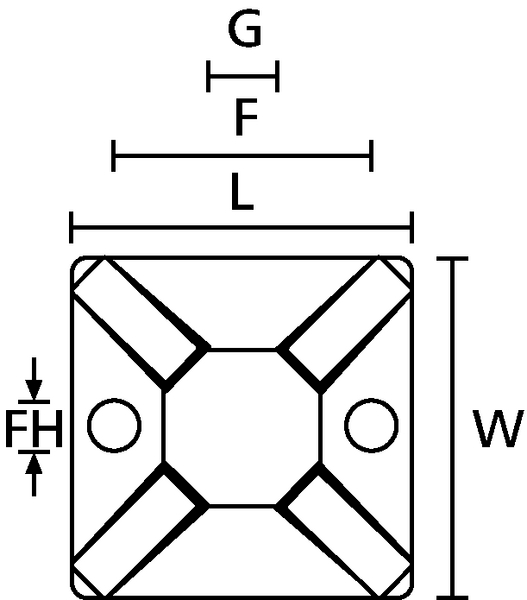

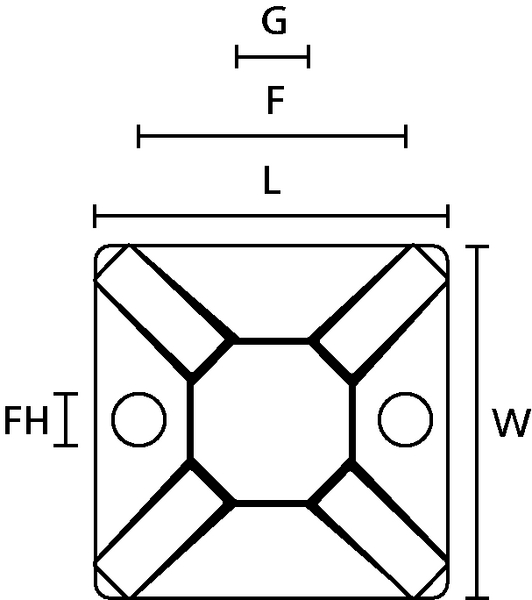

    Height (H) 4.1mm
    Length (L) 13.0mm
    Strap Width max. (G) 2.7mm
    Width (W) 13.0mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660311659
    Packaging 3 - Height (m) 0.192m
    Packaging 3 - Length (m) 0.586m
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0439m³
    Packaging 3 - Width (m) 0.39m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
