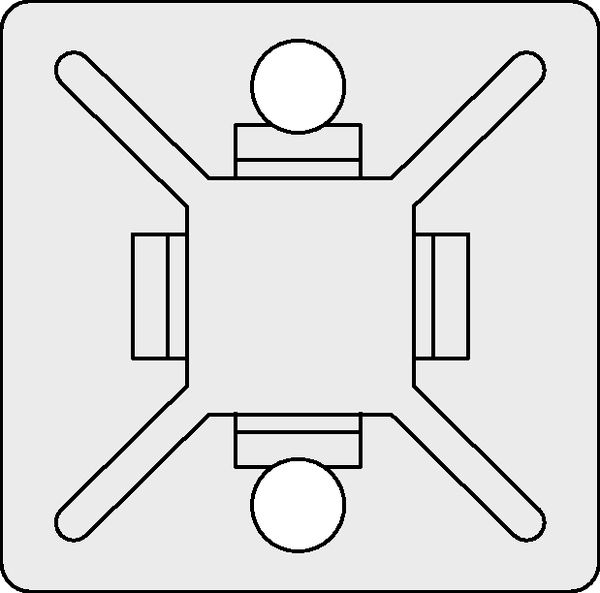

Cable tie mount for adhesive use, Wmax=10.0mm, ∅4.7 mm, black, 100pcs.
Art.-No. 151-01561
| MB5APT-I-PA66-BK
|
Details
- MB mounts with homogeneous system of acrylic adhesive
- Very good initial adhesion, increases with time
- Innovative fixing solution for high and low energy surfaces
- Protection foil with finger lift for easy peel off
Request your individual offer now
Request quote
More products in this product group:
| Application | SolidTack MB Series mounts have a square design and are fairly common in areas like electrical cabinet, railway, aerospace, automotive and agriculture machinery. The premium self-adhesive bonds well on high and low-energy surfaces like plastics, metal, varnish or paint and is suitable for a wide range of applications. |
| Colour | Black (BK) |
| Fixation Method | Screw Mounting and Adhesive |
| Local order number | MB5APT-I PA66 BK 100 |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | MB5APT-I-PA66-BK |
| Pack Cont. | 100pcs. |
| Package Content packed in | Bag |
| Product Family | SolidTack-Series MB |
| Product Group | Cable tie mounts with high performance adhesive |
| Short Description | Fixing parts with special adhesive 38x38 black |
| Type | MB5APT-I |
Download
| Adhesive | Acrylate with base of acrylic foam |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 (excluding adhesive) |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026550367 |
| Packaging 1 - Height (m) | 0.04m |
| Packaging 1 - Length (m) | 0.215m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00163m³ |
| Packaging 1 - Weight (kg) | 0.49378kg |
| Packaging 1 - Width (m) | 0.19m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 2400 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 11.02952kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.249m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 48000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.199m³ |
| Packaging 4 - Weight (kg) | 241.6kg |
| Packaging 4 - Width (m) | 0.8m |
