18/11/2024

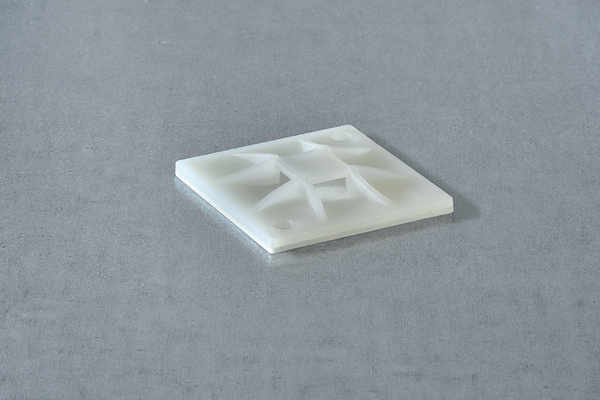

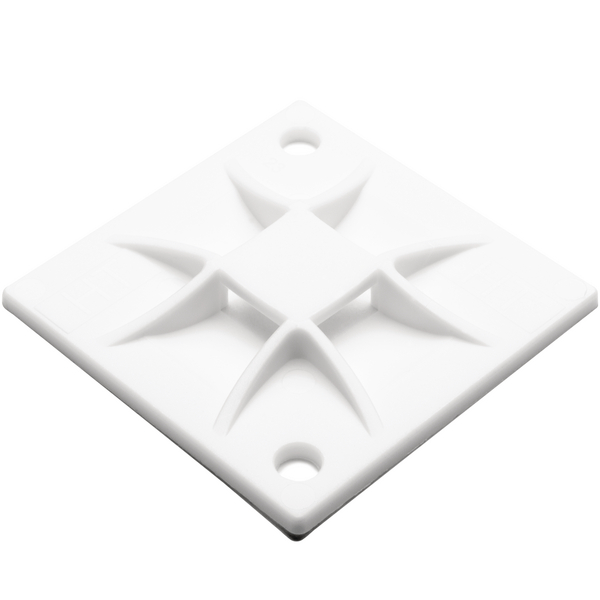

Cable tie mount for screw fixation, Wmax=8.4mm, ∅4.1 mm, M4 Screw, natural, 50pcs.
Art.-No. 151-10903 | QM40-PA66-NA |  Details

Q-mount QM, 4-way entry, adhesive.

    • Screwable versions
    • Perfect for combination with Q-ties
    • 4-way entry for Q-tie
    • Q-Mount base locks Q-tie in vertical position, means the hands are free to apply cables
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application Q-mounts are ideally suited for holding our innovative Q-ties in place. They would perfectly fit to all applications where a reliable and durable fixation is required.
    Colour Natural (NA)
    Fixation Method Screw Mounting and Adhesive
    For Ties Q-Ties
    Local order number QM40-PA66-NA-C1
    Material Polyamide 6.6 (PA66)
    Mounting Screw Type M4 Screw
    PART DESCRIPTION QM40-PA66-NA
    Pack Cont. 50pcs.
    Package Content packed in Bag
    Product Family Q-Mount Series QM, screwable
    Product Group Cable tie mounts Q-Series
    Short Description Screwable Fixing Mount 40x40 natural
    Type QM40
    Fixing Hole Centres (F) 30.0mm
    Fixing Hole Centres (F) (imperial) 1.19"
    Height (H) 5.5mm
    Length (L) 40.0mm
    Strap Width max. (G) 8.4mm
    Strap Width max. (G) (imperial) 0.31"
    Weight/Unit 0.002959kg
    Width (W) 40.0mm
    for Hole ∅ (FH) 4.1 mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 V2
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026413730
    Packaging 1 - Height (m) 0.03m
    Packaging 1 - Length (m) 0.13m
    Packaging 1 - Qty 50
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00086m³
    Packaging 1 - Weight (kg) 0.15693kg
    Packaging 1 - Width (m) 0.22m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121703
