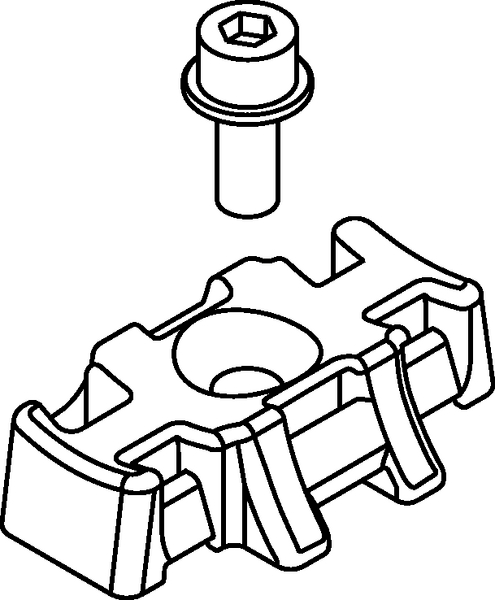

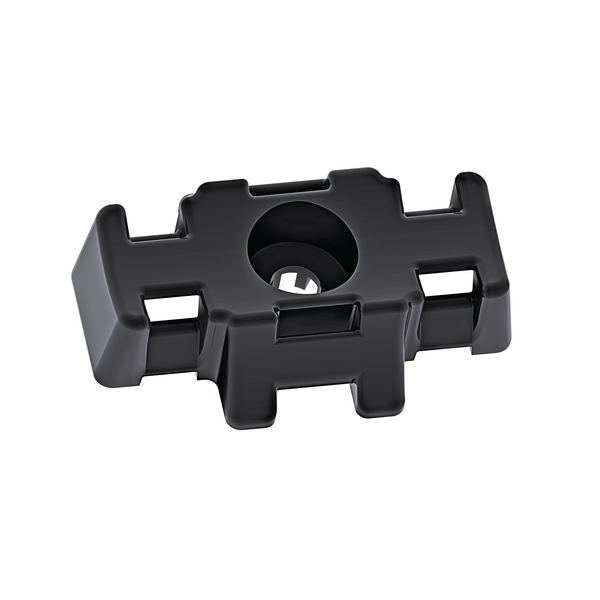

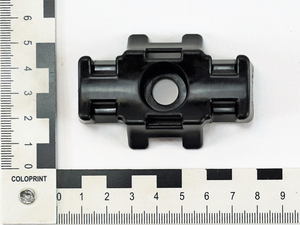

Cable tie mount for screw fixation, Wmax=9.0mm, ∅10.0 mm, ∅10.0 mm, M10 Screw, black, 500pcs.
Art.-No. 151-02829 | S3CBM10R-PA6GF30-BK Details

Request your individual offer now

Application These 3-way routing saddle mounts are designed to secure up to three bundles for multiple routing and reduce chaving or wear to those bundles. Applicable for various applications within the OEM, mass transit, defence or heavy truck and automotive markets.
Colour Black (BK)
Key product features vibration absorbing, for multiple routing
Local order number S3CBM10R-PA6GF30-BK
Material Polyamide 6, glass-fibre reinforced (PA6GF30)
Mounting Screw Type M10 Screw
PART DESCRIPTION S3CBM10R-PA6GF30-BK
Pack Cont. 500pcs.
Package Content packed in Bag
Type S3CBM10R
Height (H) 18.6mm
Length (L) 70.0mm
Strap Width max. (G) 9.0mm
Stud ∅ 10.0 mm
Weight/Unit 0.0172kg
for Hole ∅ (FH) 10.0 mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026619507
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 500
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 9.25kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 10000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 206.0kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121717
