25/11/2024

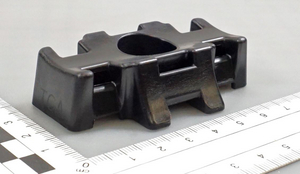

Cable tie mount for screw fixation, Wmax=9mm, ∅8.0 mm, M8 Screw, black, 500pcs.
Art.-No. 151-02257 | S3CBM8-PA6GF30-BK |  Details

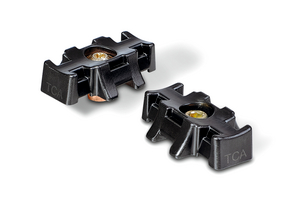

S3SB15CBM8 and S3CBM8.

    • For parallel routing of bundles
    • Secure alignment to the bundle due to H-design
    • Easy maintenance of bundle by simply changing cable tie
    • Cable tie head can be moved after bundling
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet

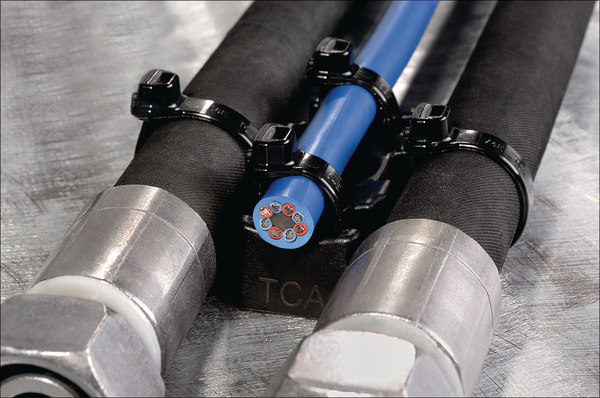

    Application These 3-way routing saddle mounts are designed to secure up to three bundles for multiple routing and reduce chaving or wear to those bundles. Applicable for various applications within the OEM, mass transit, defence or heavy truck and automotive markets.
    Colour Black (BK)
    For Ties X120R, T120R
    Key product features vibration absorbing, for multiple routing
    Local order number S3CBM8_PA6GF30_E1
    Material Polyamide 6, glass-fibre reinforced (PA6GF30)
    Mounting Screw Type M8 Screw
    PART DESCRIPTION S3CBM8-PA6GF30-BK
    Pack Cont. 500pcs.
    Package Content packed in Carton
    Product Family S3CBM8
    Product Group Heavy duty mounts for 3-way routing
    Short Description Heavy Duty Mount 70x46 mm, Polyamide 6, glass-fibre reinforced (PA6GF30%), black
    Type S3CBM8
    Bundle Diameter max (metric) 100mm
    Bundle ∅ 100mm
    Height (H) 18.6mm
    Length (L) 70mm
    Strap Width max. (G) 9mm
    Weight/Unit 0.01787kg
    Width (W) 46mm
    for Hole ∅ (FH) 8.0 mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026493145
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 500
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 9.585kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.235m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 10000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.186m³
    Packaging 4 - Weight (kg) 212.7kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
