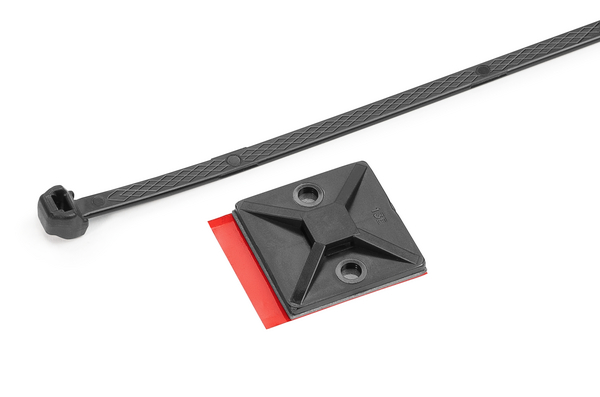

Fixing tie for adhesive use, outside serrated, ∅2.0-45.0mm, black, 500pcs.
Art.-No. 156-03592 | S50ROSMB4APT-A-SET-PP/PA66HS-BK Details

Request your individual offer now

Application S-Series cable ties made from Polypropylene (PP) are non hydroscopic, offer a higher chemical resistance and reduced CO2 footprint compared to a standard cable tie material. These cable ties are used to bundle and secure cables, pipes and/or hoses.
Application Tool EVO7, EVO7SP, EVO7i, EVO7iSP
Colour Black (BK)
Fixation Method adhesive
Identification Plate Position none
Material Polypropylene (PP), Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION S50ROSMB4APT-A-SET-PP/PA66HS-BK
Pack Cont. 500pcs.
Package Content packed in Bag
Releasable Closure (Yes/No) No
Short Description Cable tie with fixing mount with special adhesive 28x28 black
Tie Closure plastic pawl
Type S50ROSMB4APT-A-SET
Variant Outside Serrated with AntiSlip Engraving
Bundle Diameter max (metric) 45.0mm
Bundle ∅ 2.0-45.0mm
Bundle ∅ min. 2.0mm
Cable Tie Head Height (metric) 7.5mm
Cable Tie Head Length (metric) 8.3mm
Cable Tie Head Width (metric) 8.95mm
Length (L) 200.00mm
Min.Tensile Strength 185N
Thickness (T) 1.45mm
Weight/Unit 0.003617kg
Width (W) 4.90mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026752495
Packaging 1 - Type Bag
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 3500
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 13.4795kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 42000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 182.754kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121731
