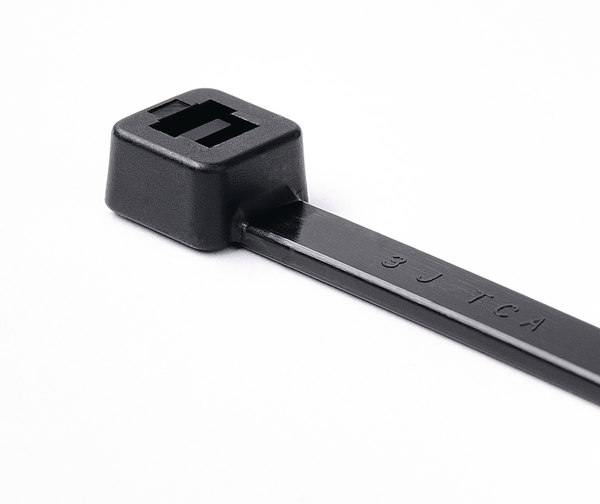

Cable tie inside serrated, 302.26x4.8mm, ∅7.0-80.0mm, black, 100pcs.
Art.-No. 111-01266 | GL300-PA11W-BK Details

  • Manufactured from polyamide 11
  • High UV resistance for long-term outdoor applications
  • Stable technical performance even at very low temperatures
  • High resistance to chemicals, including chlorides
  • Low water absorption rate for consistent technical performance and high durability
Show more

Request your individual offer now

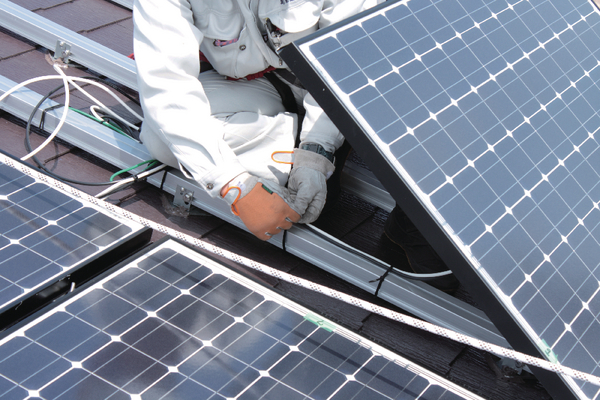

Application GalvaLok cable ties have many technical features which make them suitable for use in many applications for fixing and supporting cables, pipes and other elements. The polyamide 11 used to manufacture these ties offers excellent resistance to chemicals in even the most challenging environments such as offshore, oil rigs, construction vehicles, trucks and trailer. These cable ties have excellent UV resistance as well as being highly resistant to chemicals like chlorides: recommended for use on galvanised steel, especially on solar panel installations. In addition, the material has a high impact resistance to low temperatures which enables GalvaLok ties to be used in areas where it is cold, for example at high altitudes or Nordic countries.
Colour Black (BK)
Identification Plate Position none
Local order number GL300
Material Polyamide 11, UV-resistant (PA11W)
PART DESCRIPTION GL300-PA11W-BK
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family Galvalok-Series in PA11 black
Product Group Cable Ties for bundling wires in solar power systems
Releasable Closure (Yes/No) No
Short Description Cable Tie 301x4.8 PA11 UV-black
Tie Closure plastic pawl
Type GL300
Variant Inside Serrated
Bundle Diameter max (metric) 80.0mm
Bundle ∅ 7.0-80.0mm
Bundle ∅ min. 7.0mm
Cable Tie Head Height (metric) 5.0mm
Cable Tie Head Length (metric) 9.0mm
Cable Tie Head Width (metric) 8.8mm
Length (L) 302.26mm
Min.Tensile Strength 250N
Thickness (T) 1.5mm
Weight/Unit 0.00218kg
Width (W) 4.8mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
Specifications IEC 62275, IEC 62275:2018, UL 62275
UV-Stabilised Yes
Country of Origin JP
Customs Number 39269097
GTIN-13 / EAN 4944387960709
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.43m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00232
Packaging 1 - Weight (kg) 0.218001kg
Packaging 1 - Width (m) 0.135m
Packaging 3 - Height (m) 0.25m
Packaging 3 - Length (m) 0.44m
Packaging 3 - Qty 5000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0341
Packaging 3 - Weight (kg) 11.62405kg
Packaging 3 - Width (m) 0.31m
Packaging 4 - Height (m) 1.144m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 80000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.098
Packaging 4 - Weight (kg) 206.984kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
