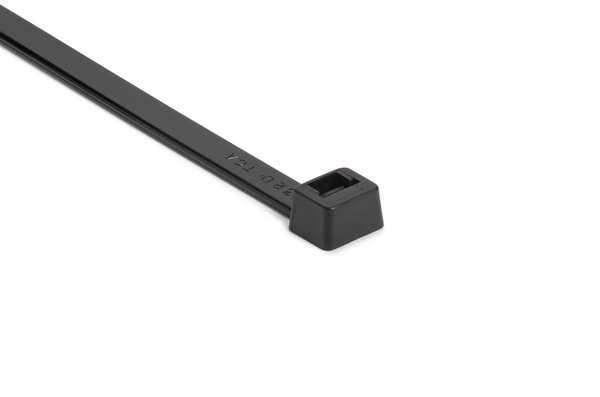

Cable tie inside serrated, 387.0x7.6mm, ∅5.0-105.0mm, black, 500pcs.
Art.-No. 111-12066
| T120R-PP-BK
|
Details
- Polypropylene cable ties for higher chemical resistance
- Can withstand continuous operating temperatures up to 115 °C
- Different sizes available in black and natural colour
- Due to its low-density PP cable ties can float on water
- Less hydroscopic material, almost no water absorption
More products in this product group:
| Application | T-Series cable ties made from Polypropylene (PP) are less hydroscopic and offer a higher chemical resistance and temperature range compared to a standard Polyamide 6.6 (PA66) material. Cable ties from Polypropylene can withstand continuous operating temperatures up to +115 °C. These cable ties are used to bundle and secure cables, pipes and/or hoses. |
| Application Method | Quick, simple fixing by hand or with HellermannTyton tensioning tools |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Local order number | T120R.PB6P |
| Material | Polypropylene (PP) |
| PART DESCRIPTION | T120R-PP-BK |
| Pack Cont. | 500pcs. |
| Package Content packed in | Bag |
| Product Family | T-Series in PP |
| Product Group | Cable Ties for higher chemical resistance for temperatures up to +115 °C in Polypropylene |
| Releasable Closure (Yes/No) | No |
| Short Description | Cable Tie Polypropylene 390x7.6 black |
| Tie Closure | plastic pawl |
| Type | T120R |
| Variant | Inside Serrated |
|
|
| Bundle Diameter max (metric) | 105.0mm |
| Bundle ∅ | 5.0-105.0mm |
| Bundle ∅ min. | 5.0mm |
| Cable Tie Head Length (metric) | 10.5mm |
| Cable Tie Head Width (metric) | 12.65mm |
| Height (H) | 7.35mm |
| Length (L) | 387.0mm |
| Min.Tensile Strength | 535N |
| Strap Width max. (G) (imperial) | 0.50" |
| Thickness (T) | 1.8mm |
| Weight/Unit | 0.0044kg |
| Width (W) | 7.6mm |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +115 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026311968 |
| Packaging 1 - Height (m) | 0.125m |
| Packaging 1 - Length (m) | 0.48m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0222m³ |
| Packaging 1 - Weight (kg) | 2.200001kg |
| Packaging 1 - Width (m) | 0.37m |
| Packaging 3 - Height (m) | 0.225425m |
| Packaging 3 - Length (m) | 0.6096m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0545m³ |
| Packaging 3 - Weight (kg) | 9.750004kg |
| Packaging 3 - Width (m) | 0.396875m |
| Packaging 4 - Height (m) | 1.269m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 30000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.218m³ |
| Packaging 4 - Weight (kg) | 167.25kg |
| Packaging 4 - Width (m) | 0.8m |
