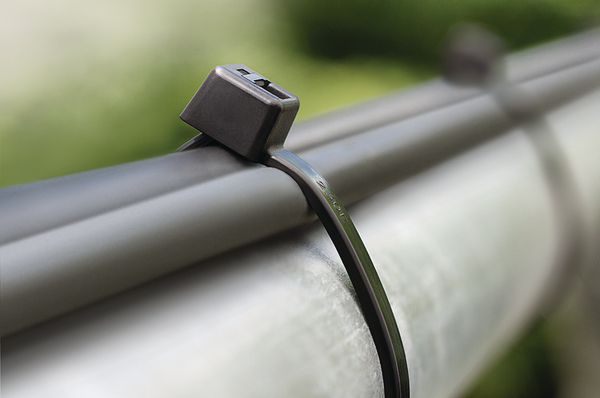

Cable tie inside serrated, 365x7.6mm, ∅5.0-100.0mm, black, 100pcs.
Art.-No. 111-01696 | T150R-PA66W-BK Details

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool
Show more

Request your individual offer now

Application These cable ties are used for routing, bundling and securing of cables, pipes and hoses.
Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
Colour Black (BK)
Identification Plate Position none
Local order number T150R(RW)/100PTD/W
Material Polyamide 6.6, UV-resistant (PA66W)
PART DESCRIPTION T150R-PA66W-BK
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family T-Series in PA66W black
Product Group Cable Ties for outdoor use (UV-resistant)
Releasable Closure (Yes/No) No
Short Description Cable Tie 365x7.6 mm, UV-resistant, black
Tie Closure plastic pawl
Type T150R
Variant Inside Serrated
Bundle Diameter max (metric) 100.0mm
Bundle ∅ 5.0-100.0mm
Bundle ∅ min. 5.0mm
Length (L) 365mm
Min.Tensile Strength 670N
Weight/Unit 0.005136kg
Width (W) 7.6mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Specifications EN 45545-2
Country of Origin SG
Customs Number 39269097
GTIN-13 / EAN 4031026516462
Packaging 1 - Height (m) 0.045m
Packaging 1 - Length (m) 0.49m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00496
Packaging 1 - Weight (kg) 0.513601kg
Packaging 1 - Width (m) 0.225m
Packaging 3 - Height (m) 0.218m
Packaging 3 - Length (m) 0.599m
Packaging 3 - Qty 2000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0522
Packaging 3 - Weight (kg) 11.02202kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.234m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 40000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.185
Packaging 4 - Weight (kg) 241.44kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
