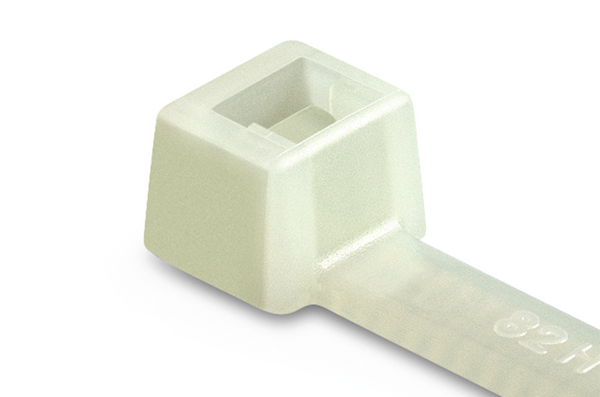

Cable tie inside serrated, 205.0x2.5mm, ∅1.5-50mm, natural, 100pcs.
Art.-No. 111-02119
| T18L-PA66-NA
|
Details
- Available in a wide range of materials and sizes
- High tensile strength with very low insertion force
- Only high quality plastic is used meeting recycling targets
- Inside serrated cable ties for a strong hold onto bundles
- Ergonomic bent tail offers quick and simple installation
- Easy application either manually or with an application tool
More products in this product group:

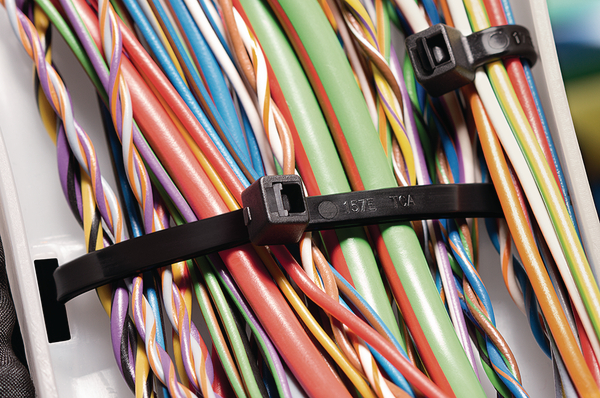

| Application | These cable ties are used for routing, bundling and securing of cables, pipes and hoses. |
| Application Method | Quick, simple fixing by hand or with HellermannTyton tensioning tools |
| Colour | Natural (NA) |
| Identification Plate Position | none |
| Local order number | T18L.NN3P |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | T18L-PA66-NA |
| Pack Cont. | 100pcs. |
| Package Content packed in | pcs. |
| Product Family | T-Series in PA66 natural |
| Product Group | Cable Ties Polyamide 6.6 standard |
| Releasable Closure (Yes/No) | No |
| Short Description | Cable Tie 200x2.5 mm natural |
| Tie Closure | plastic pawl |
| Type | T18L |
| Variant | Inside Serrated |
|
|
| Bundle Diameter max (metric) | 50mm |
| Bundle ∅ | 1.5-50mm |
| Bundle ∅ min. | 1.5mm |
| Cable Tie Head Length (metric) | 4.8mm |
| Cable Tie Head Width (metric) | 4.5mm |
| Height (H) | 3.9mm |
| Length (L) | 205.0mm |
| Min.Tensile Strength | 80N |
| Strap Width max. (G) (imperial) | 0.18" |
| Thickness (T) | 1.2mm |
| Weight/Unit | 0.0003kg |
| Width (W) | 2.5mm |
Download
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Nato number | 5975-12-183-3738 |
| Operating Temperature | -40 °C to +85 °C, (+105 °C, 500 h) |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | ANSI/UL 62275, csa-C22.2 no. 62275 |
| UL OCD link | Link |
| UL Recognized (US and Canada) | Yes |
| UL Type | 11 |
| UL-File Number | E85319 |
|
|
|
| Country of Origin | SG |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026104416 |
| Packaging 1 - Height (m) | 0.004m |
| Packaging 1 - Length (m) | 0.245m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00021m³ |
| Packaging 1 - Weight (kg) | 0.070001kg |
| Packaging 1 - Width (m) | 0.215m |
| Packaging 3 - Height (m) | 0.218m |
| Packaging 3 - Length (m) | 0.599m |
| Packaging 3 - Qty | 20000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0522m³ |
| Packaging 3 - Weight (kg) | 14.7502kg |
| Packaging 3 - Width (m) | 0.4m |
| Packaging 4 - Height (m) | 1.234m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 400000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.185m³ |
| Packaging 4 - Weight (kg) | 316.0kg |
| Packaging 4 - Width (m) | 0.8m |
